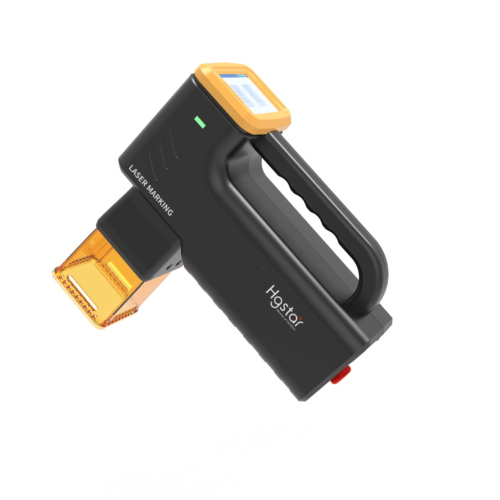

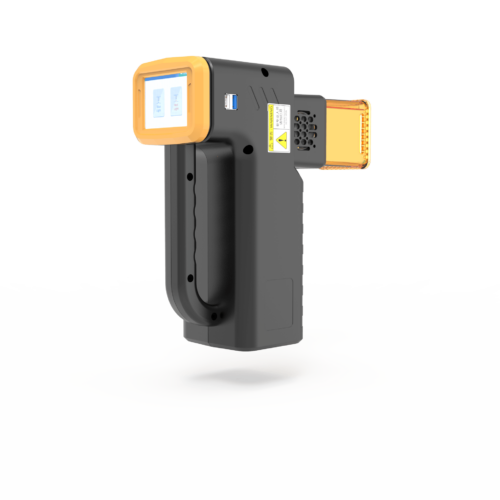

Smart DLシリーズ ハンドヘルドデュアルライトレーザー彫刻機

The newly developed Smart-DL Handheld Dual-Light Laser Engraving Machine from HG Star is designed for multifunctionality and high precision.

This compact device takes up minimal space and utilizes red and blue light technology, making it suitable for a variety of materials.

It supports smart connectivity, allowing users to easily control the machine and customize engraving content through a mobile app.

The machine can be operated both handheld and in a fixed position, making it ideal for various application scenarios.

Whether for professional or personal use, it provides an efficient and convenient engraving experience across different environments.

Laser Marking Machine Technical Parameters

MODEL	Smart-DL
Size	288*109*152 mm（no includes bracket）
N.W.	2.7kg（includes bracket）
Working Area	55mm*55mm
Power&Type	5/10W 455nm Diode Blue Light & 2W 1064nm Red Laser
Power Supply	Built-in lithium battery power supply/ DC20V (support charging bank power supply)
Laser Adjustment Range	25-100%（gradient adjustable）
Language	Chinese, English, Spanish, French, German, Japanese, Korean, etc
Engraving Speed	4000mm/s
Preview Speed	10000mm/s
Operation Mode	Mobile Phone,Computer APP, Touch Screen
Wireless Connection	WIFI, Bluetooth 5.0
Support System	WIN10+,ANDROID7.0+, IOS System
Interface Specifications	Data Interface: TYPE-A Power Interface: TYPE-C
Machine Power	<100W
Cooling Method	Air Cooling
Working Temperature	0℃-40℃
Working Environment Humidity	80%

Laser Cleaning Machine Video

Product Details Display

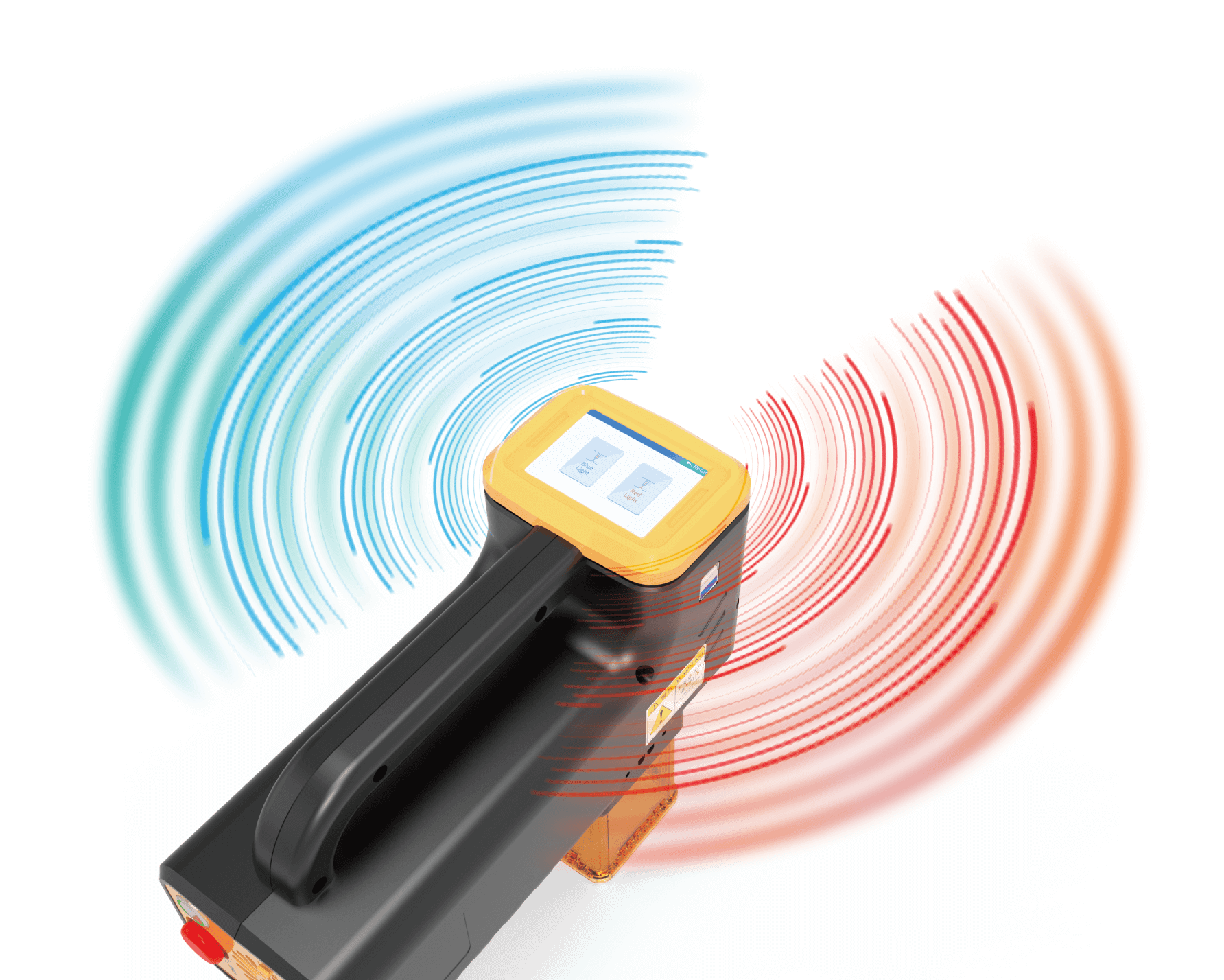

Dual-light Mode

Choose between red and blue light modes to suit different material engraving needs, effortlessly adapting to diverse processing scenarios.

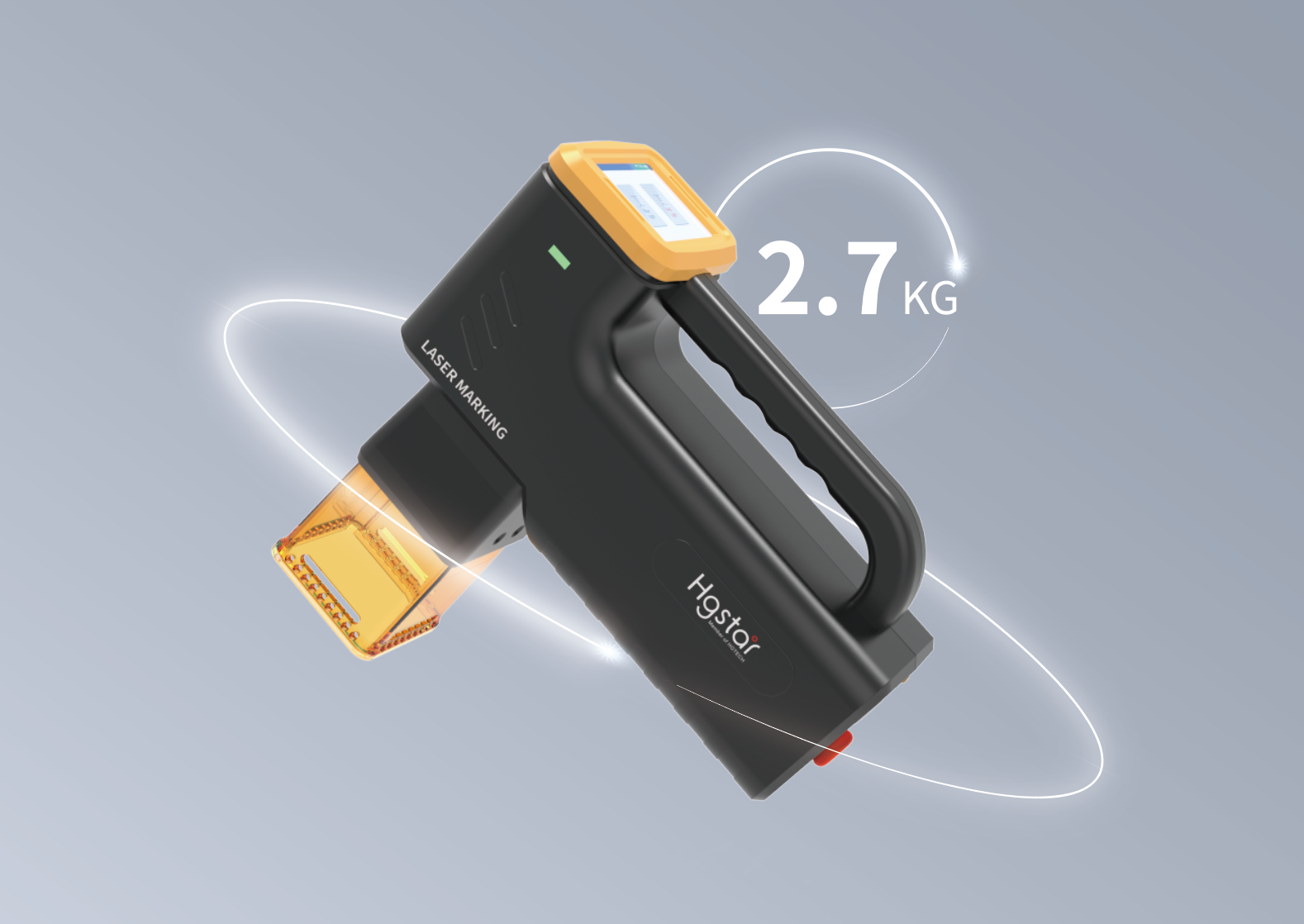

Compact and Lightweight

Weighing only 2.7 kg, this lightweight, portable device can be easily operated with one hand, significantly improving convenience and work efficiency.

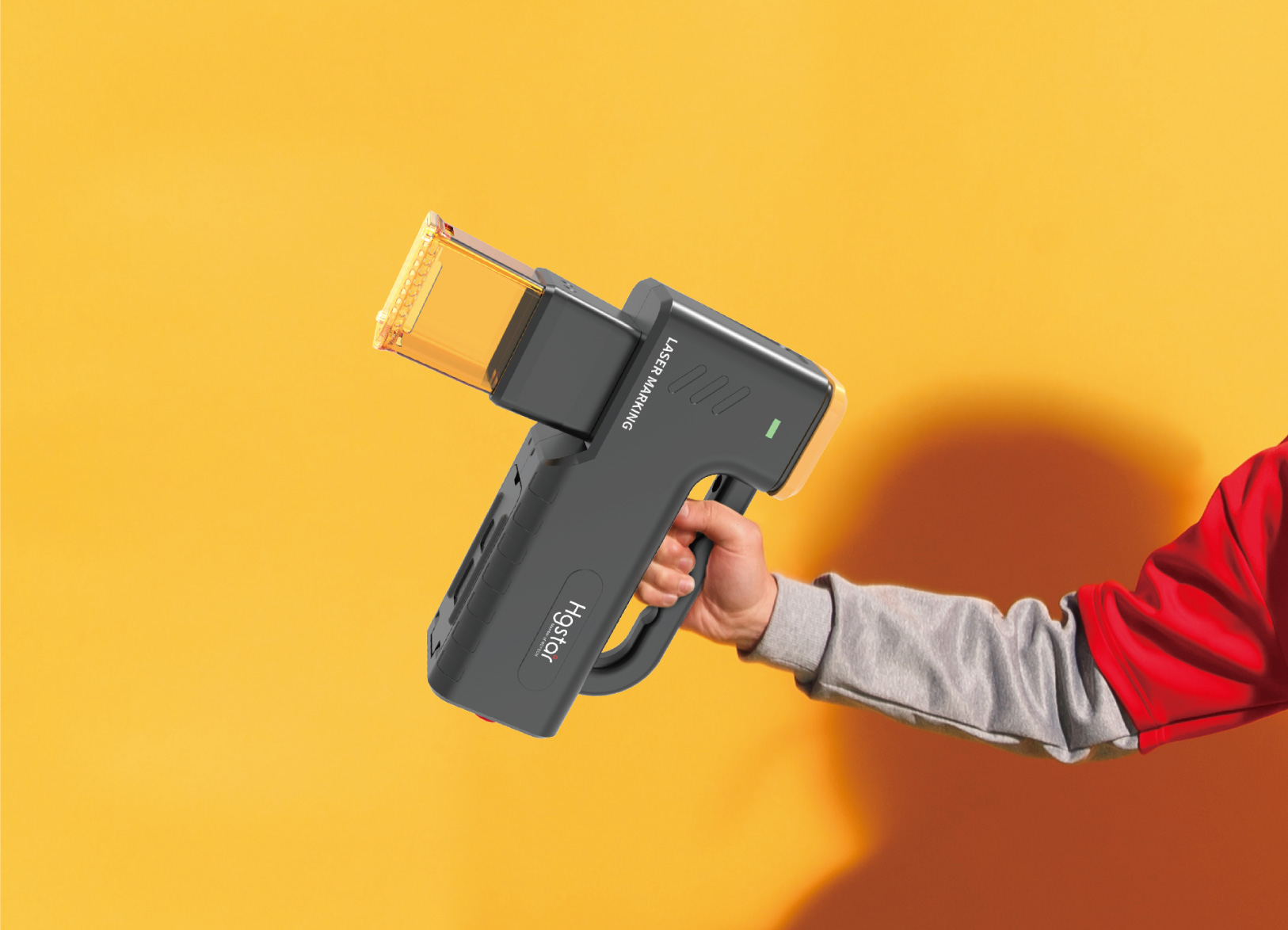

Flexible Operation Modes

Supports both handheld and fixed operation modes, catering to various application scenarios and easily handling different job requirements.

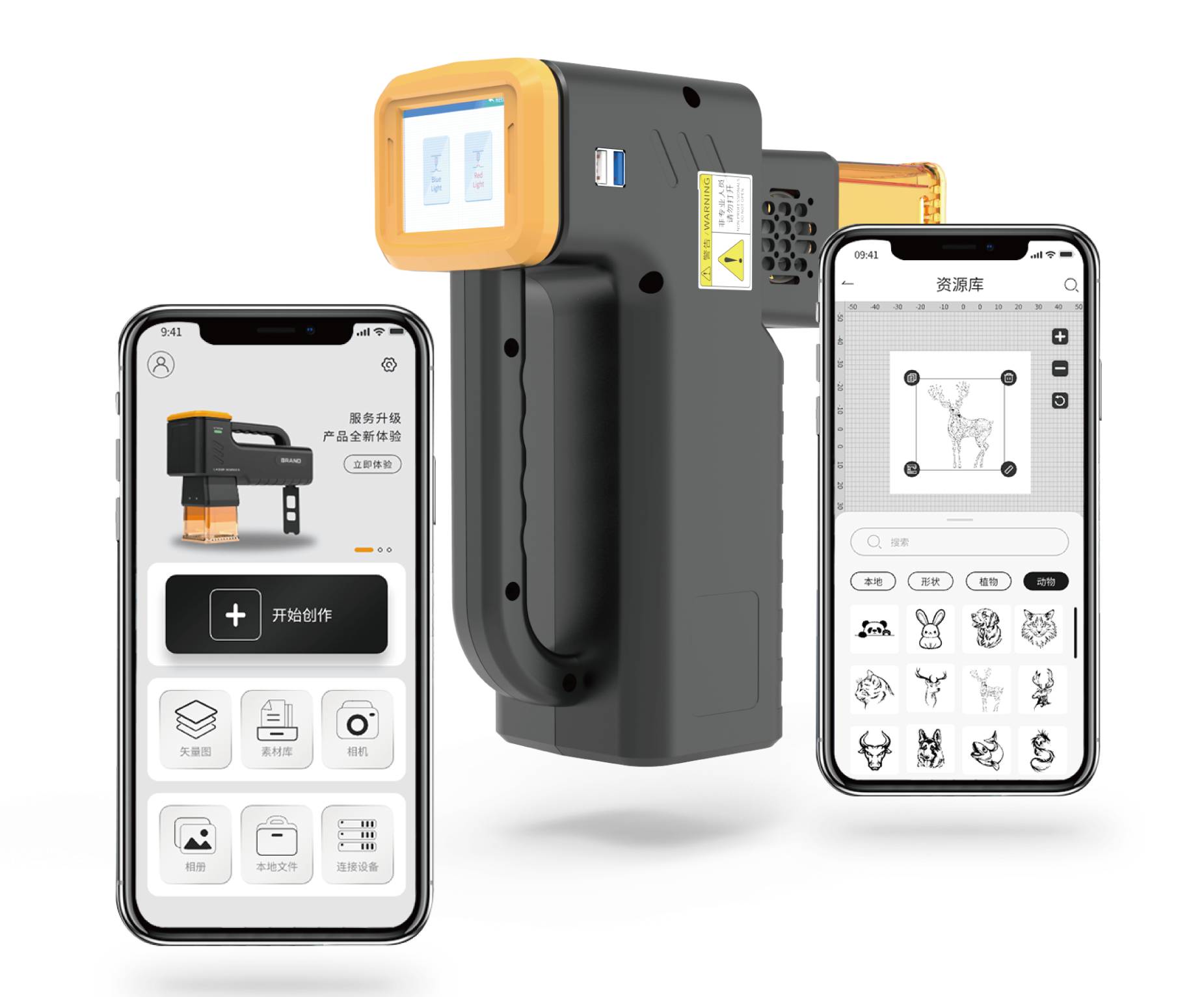

Smart Connectivity

The machine connects to a mobile app, enabling users to freely customize engraving content based on their needs, with support for multiple preset options.

Versatile Engraving Modes

Seamlessly switch between shallow engraving, deep engraving, and cutting functions, effortlessly adapting to multiple work scenarios and breaking through usage limitations.

Carving Scope

Industry Applications

Are you interested in our product?

Please feel free to contact us, we would like to help you with advice and support.
