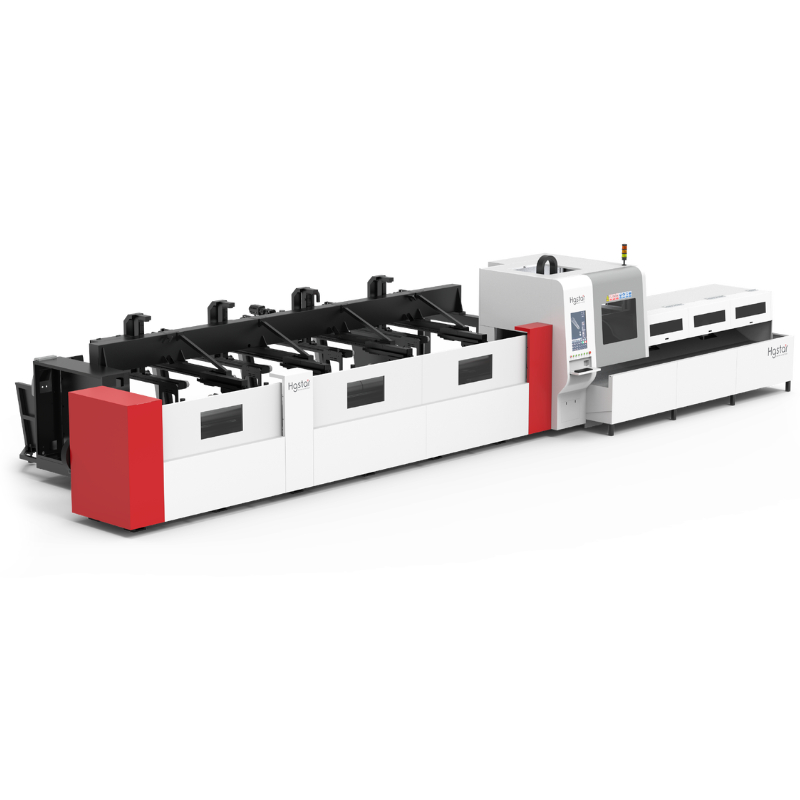

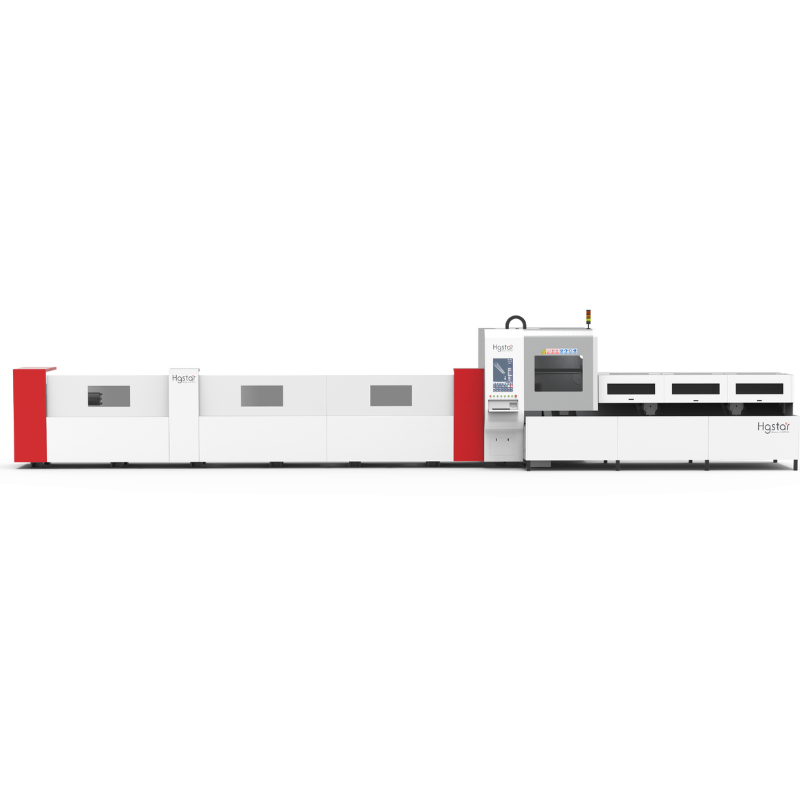

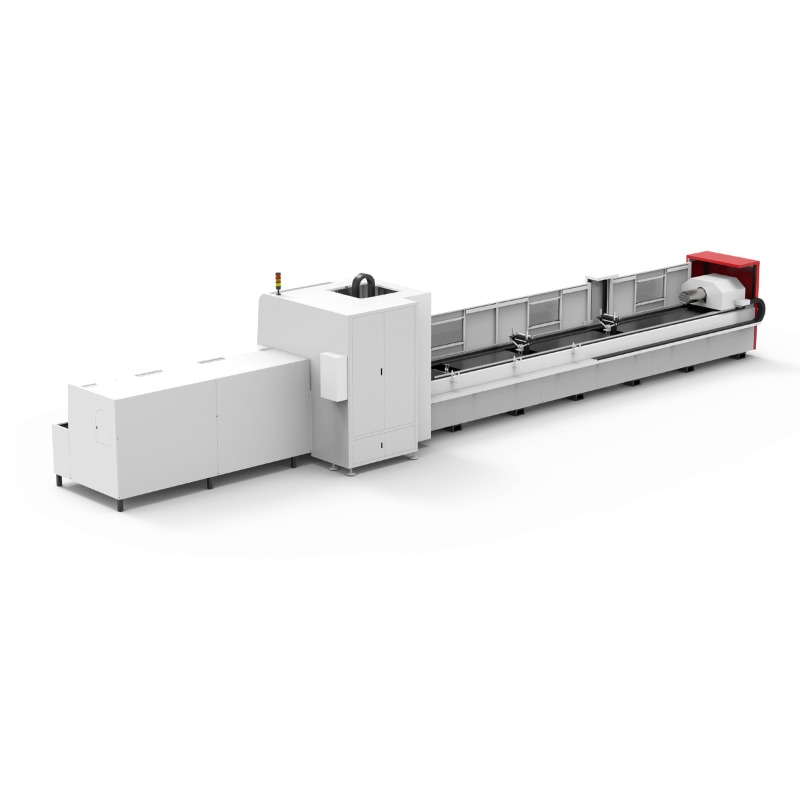

SMART Tflx6535 two chuck tube laser cutting machine is manufactured by HGSTAR according to international export standard. This series of equipment is the preferred model for the metal tube processing industry. It has high precision, processing accuracy with higher photoelectric conversion efficiency, strong anti-high capability and stability of lasers.
Fiber Laser Tube Cutting Machine Parameter
| MODEL | SMART Tflx6535 |
|---|---|
| Industry Applications | Furniture Industry, Automotive Industry, Metal Processing Industry,Engineering Machinery Industry, Construction Industry, Aerospace Industry, Chemical and Power Industries |
| Laser Source | 2000W、3000W、6000W |
| Processing Tube Diameter | Round Tube：20-350 mm Square Tube：20-350mm |
| Tube Processing Length | 0-6500MM |
| Single Tube Cutting Length | ≤3500mm |
| Idle Running Speed | 100m/min |
| Acceleration | 0.8G |
| Chuck Rotation Speed | 150r/min |
| Chuck Load Capacity | 120 Chuck:120KG / 230 Chuck:300KG / 350 Chuck:800KG |
Features of Laser Tube Cutting Machine
Durable, Accurate, Effective
The welded construction guarantees remarkable stiffness and accuracy, allowing for long-term use without deformation.The inclusion of an automatic loading and unloading device significantly enhances the machine’s productivity.
Fast, Reliable, Stable
Pneumatic chuck
Double rows of rollers for effective correction of pipe bending with the ability of precise centering, fast automated processing.High support bearing stability with integral support base structure, highly rigid long cantilever structure, and optional clamping of various profiles.
Adaptable and Accurate
Bed follower centering bracket
Fully automatic servo-following control allows the great adaptability to pipe rotation radius change, and prevent the pipe from sagging.
The system chuck and clamp the pipe during the process, thus improving the processing accuracy.
Intelligent and Professional
CNC Control System FSCUT5000
Rich application assistance functions with professional operating software (TubePro) and nesting software (TubeT).
Higher quality and Efficient
Standard Cutting Head
Self-focusing fiber optic cutting head,
Multi-protection lens, drawer type mirror holder
Improved optical setup and special airflow design
Bevel cutting (Optional)
Auto focus fiber cutting head
Multi-protection
Great optical configuration and efficient airflow design
Stable rotating mechanism, can achieve ±45° bevel cutting
Option: Semi-Auto or Auto loading system
| system | Semi-Auto loading (TOP) | Auto loading (Bottom) |
|---|---|---|
| Manually lift pipes to loading rack; Automatically sorting, measuring length, loading and transporting the pipes to cutting head. |
||
| Unit Weight | ≤200KG | ≤240KG |
| Loading Capacity of the Silo | ≤3T | ≤3T |
| Applications | Rectangular, Round, Square and OB tubes | Pipe whose cross section is axisymmetric |
| Other | Modular design, servo drive, independent control system. | |
Are you interested in our product?
Please feel free to contact us, we would like to help you with advice and support.
