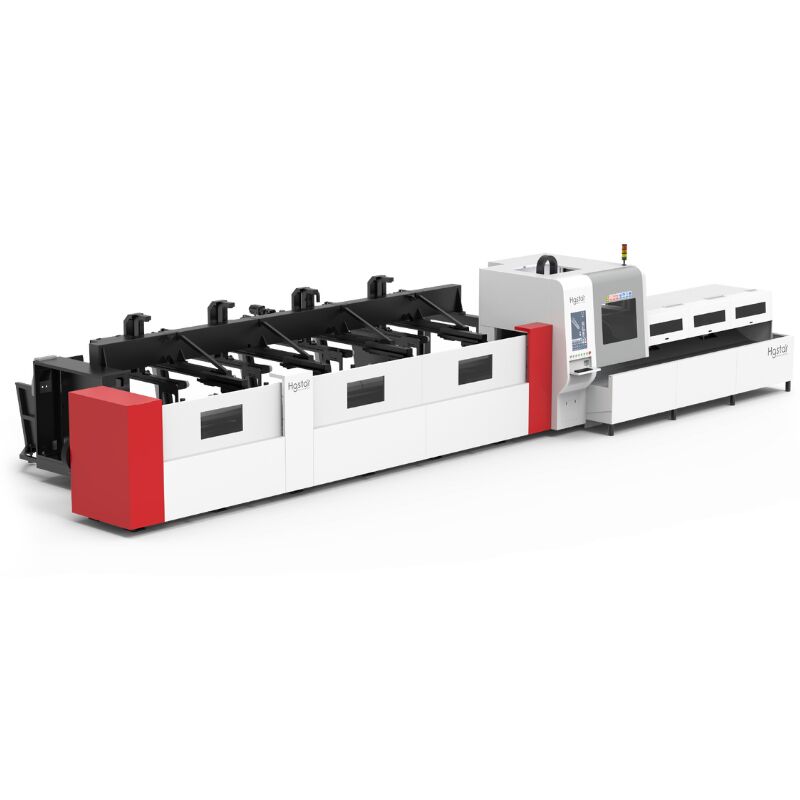

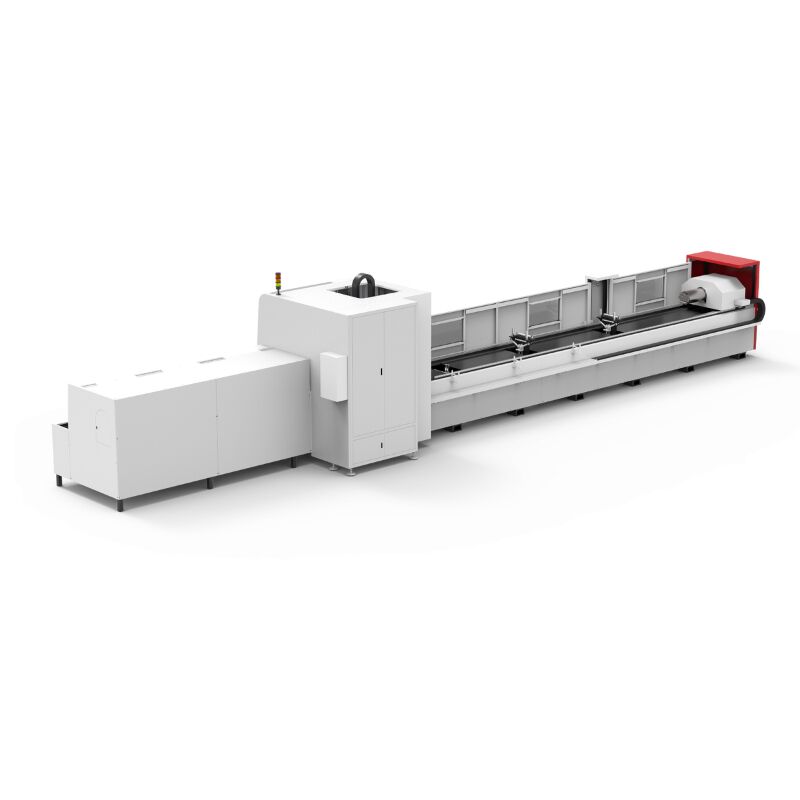

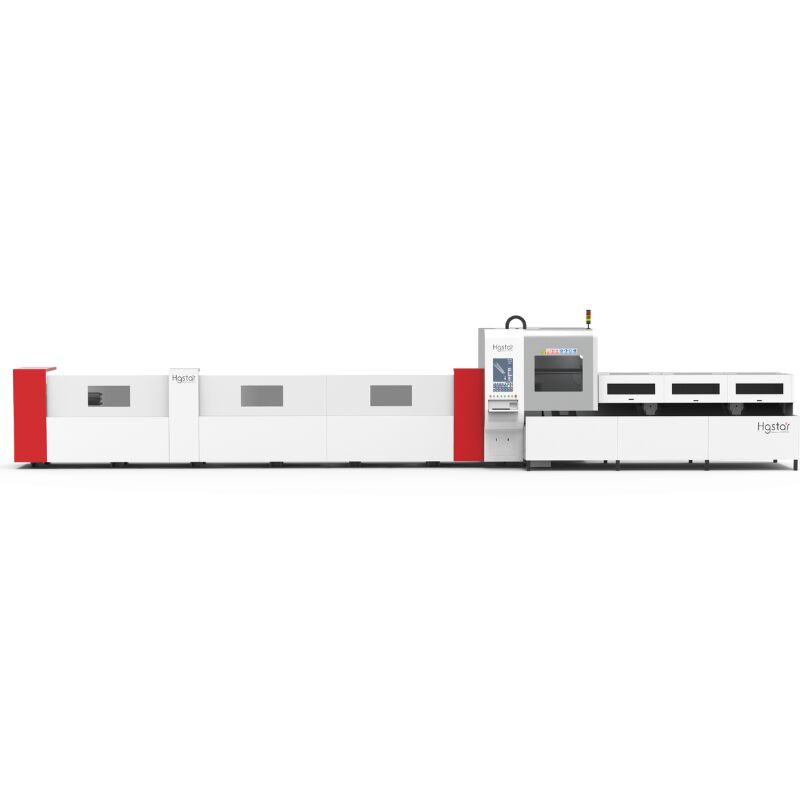

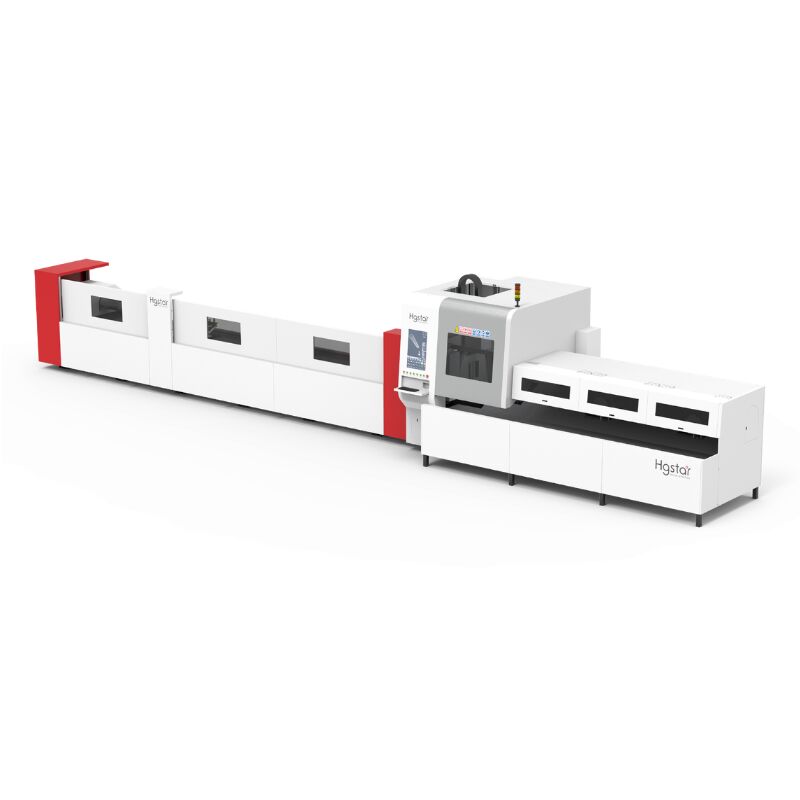

SMART Talos6535/7535/9035 two chuck cutting machine is manufactured by HGSTAR according to international export standard. This series of equipment is the preferred model for the metal tube processing industry. It has high precision, processing accuracy with higher photoelectric conversion efficiency, strong anti-high capability and stability of lasers.
Fiber Laser Tube Cutting Machine Parameter
| MODEL | SMART Talos 6535 | SMART Talos 7535 | SMART Talos 9035 |
|---|---|---|---|
| Pipe loading length | 6500mm | 7500mm | 9000mm |
| Laser Source | Fiber & 1000W – 6000W | ||
| CNC System | FSCUT 5000B | ||
| Chuck diameter | Φ20mm – Φ230 / Φ20mm – Φ280 / Φ20mm – Φ350 | ||
| Position Accuracy (X and Y axis) | 0.05mm | ||
| Reposition Accuracy (X and Y axis) | 0.03mm | ||
| Power Supply Requirement | 380V 50/60Hz | ||
Features of Laser Tube Cutting Machine
Durable, Accurate, Effective
The welded construction guarantees remarkable stiffness and accuracy, allowing for long-term use without deformation.The inclusion of an automatic loading and unloading device significantly enhances the machine’s productivity.
Fast, Reliable, Stable
Pneumatic chuck
Double rows of rollers for effective correction of pipe bending with the ability of precise centering, fast automated processing.High support bearing stability with integral support base structure, highly rigid long cantilever structure, and optional clamping of various profiles.
Adaptable and Accurate
Bed follower centering bracket
Fully automatic servo-following control allows the great adaptability to pipe rotation radius change, and prevent the pipe from sagging.
The system chuck and clamp the pipe during the process, thus improving the processing accuracy.
Intelligent and Professional
CNC Control System FSCUT5000
Rich application assistance functions with professional operating software (TubePro) and nesting software (TubeT).
Higher quality and Efficient
Standard Cutting Head
Self-focusing fiber optic cutting head,
Multi-protection lens, drawer type mirror holder
Improved optical setup and special airflow design
Bevel cutting (Optional)
Auto focus fiber cutting head
Multi-protection
Great optical configuration and efficient airflow design
Stable rotating mechanism, can achieve ±45° bevel cutting
Option: Semi-Auto or Auto loading system
| system | Semi-Auto loading (TOP) | Auto loading (Bottom) |
|---|---|---|
| Manually lift pipes to loading rack; Automatically sorting, measuring length, loading and transporting the pipes to cutting head. |
||
| Unit Weight | ≤200KG | ≤240KG |
| Loading Capacity of the Silo | ≤3T | ≤3T |
| Applications | Rectangular, Round, Square and OB tubes | Pipe whose cross section is axisymmetric |
| Other | Modular design, servo drive, independent control system. | |
