4 in 1 Handheld Fiber Laser Welding And Cleaning Machine

The 4-in-1 Multifunction 1kw 1.5w 2kw 3kw Handheld Fiber Laser Welding Cutting Cleaning Machine is very efficient and meets a variety of needs, including metal cutting, welding, descaling and surface cleaning. It offers powerful welding capabilities. The welding machine body is ergonomically designed and lightweight and compact to ensure optimal productivity.

Fiber Laser Welding Machine Parameter

Model number	Smart – HWE
Laser type	Fiber
Wavelength	1080nm
Power	1.5KW/2KW/3KW
Frequency	20-5000Hz
Output focal length	120mm
Scanning range	Line 0-50mm
Depth of focus	max. 10mm
Cooling method	Water cooling
Fiber length	10M
Port	1 way gas
Power consumption	≤6KW
Air pressure requirement	4-6Bar (Select nitrogen,argon according to process requirements.)
Electricity demand	1.5KW-AC220V/50/60Hz	2KW/3KW-AC380V/50/60Hz

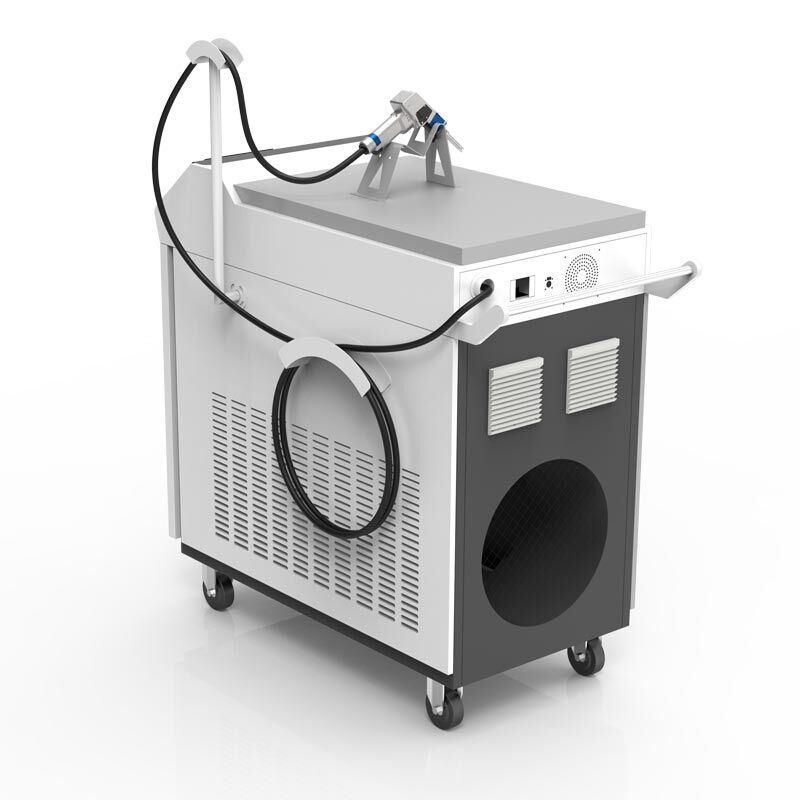

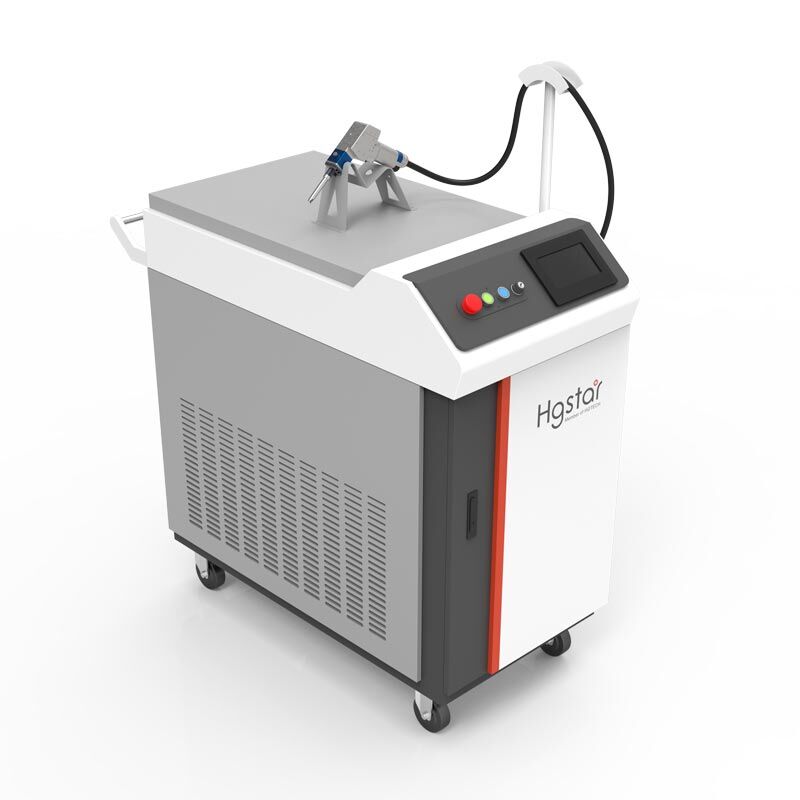

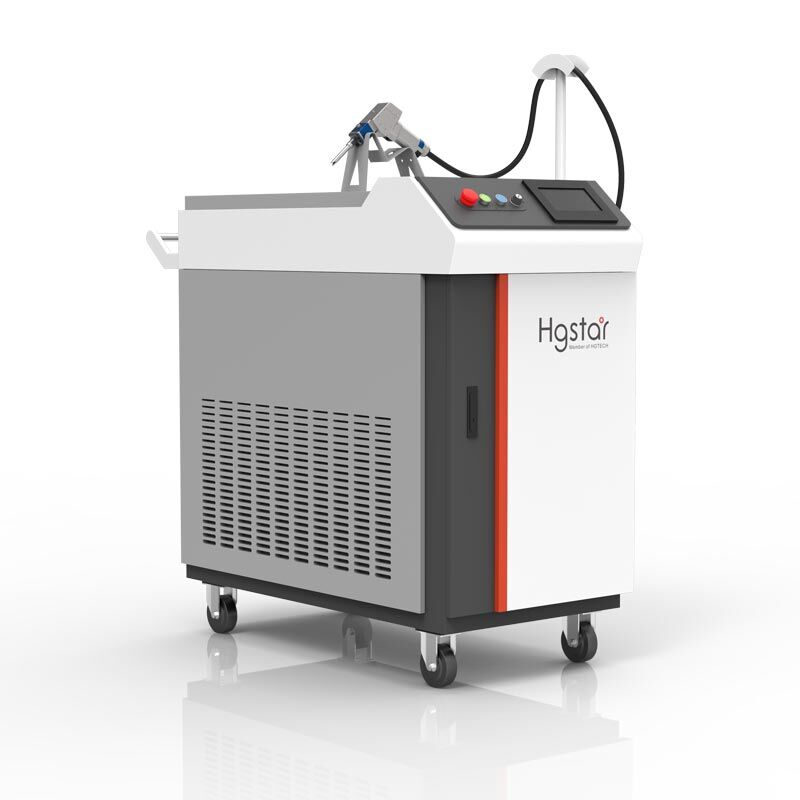

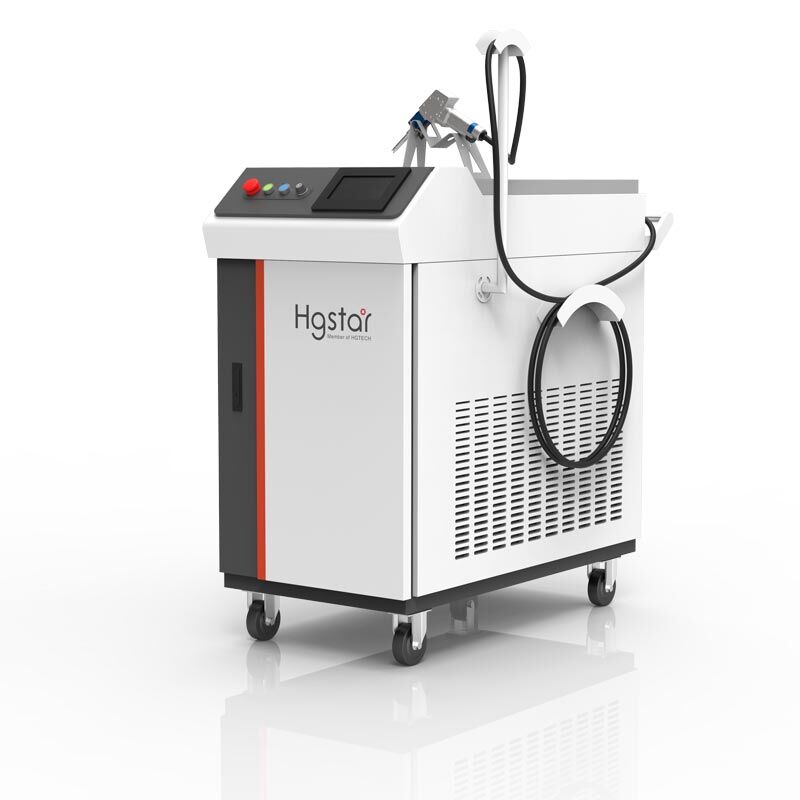

Product Details Display
