Model: SMART Series
Category: Laser Cutting Machine
Brand Name: HG Smart
Laser power: 1000W-6000W
Stock: 20 units in stock
Uses: It can cut stainless steel, carbon steel, galvanized sheet, electrolytic sheet, brass, aluminum, various alloy sheets, rare metals and other metals.

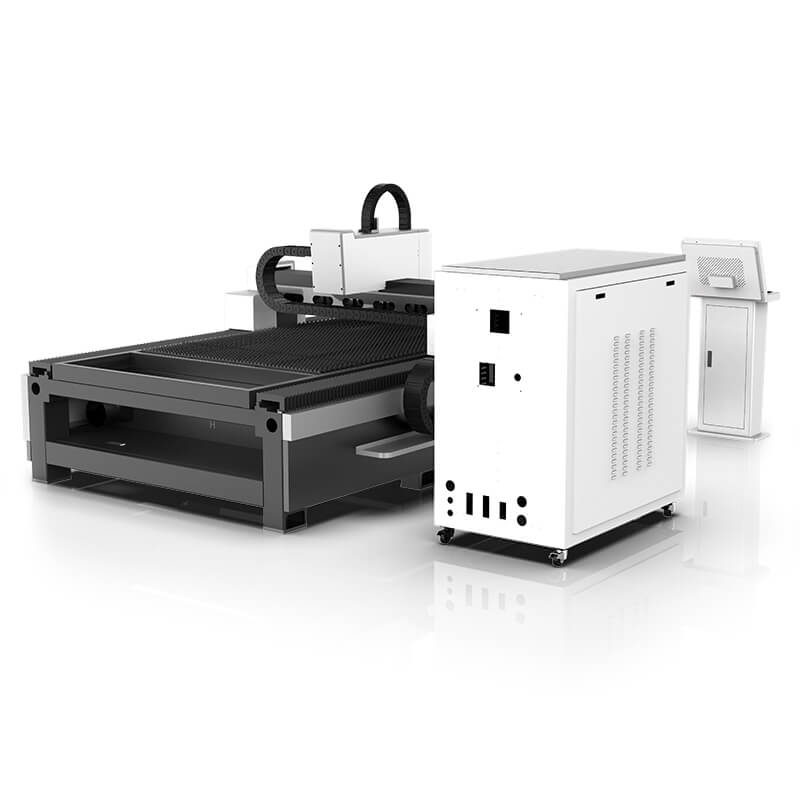

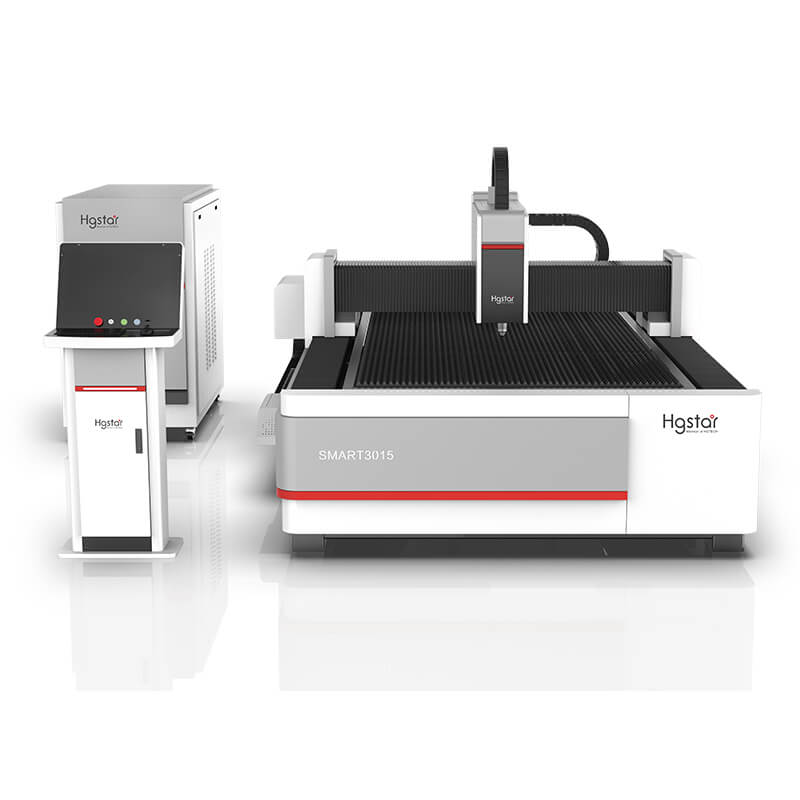

Smart series is the most cost effective laser cutting machine solution including different power(1000w, 1500w, 2000w) for cutting steel, aluminum, titanium, alloys, brass, copper, iron and etc. Now this budget laser cutting machine offers low price with the best service and support.
| Machine Model | SMART3015、4015、6015、8015 |
|---|---|
| Cutting Area (L×W) | 3000mm×1500mm,4000mm×1500mm 6000mm×1500mm,8000mm×1500mm |
| Laser Source | Fiber & 1000W – 6000W |
| CNC System | FSCUT 1000 |
| Laser Cutting Head | F125mm |
| Max Moving Speed | 80m/min, Acceleration is 1.0G |
| Position Accuracy (X and Y axis) | 0.02mm |
| Reposition Accuracy (X and Y axis) | 0.03mm |
| Power Supply Requirement | 380V 50/60Hz 35KVA |
| Machine weight | ≤2500 Kg |
| Appearance size | 4550mm×2280mm×2100mm |
The software automatically adjusts the focusing lens to achieve automatic perforating and cutting of various thickness plates. The speed of automatically adjusting the focus lens is ten times faster than manual adjustment.
The high strength machine bed is treated with a stress relief annealing method at 600°C, which results in a strong structure rigidity; integral mechanical structures have the advantages of small deformation, low vibration, and extremely high precision.
JAPAN Fuji servo high speed srvo motor
Effectively reduce beam speed, make cutting and machine more stable, and extend machine life.
Effectively reduce the damage rate of laser heads, help you save maintenance cost.
Aluminum monolithic cast beam, light weight, high strength, no deformation Light crossbeams, which are molded and framed using integral steel mold and die-casting technology, give equipment a high operation speed, improving processing efficiency and quality.
