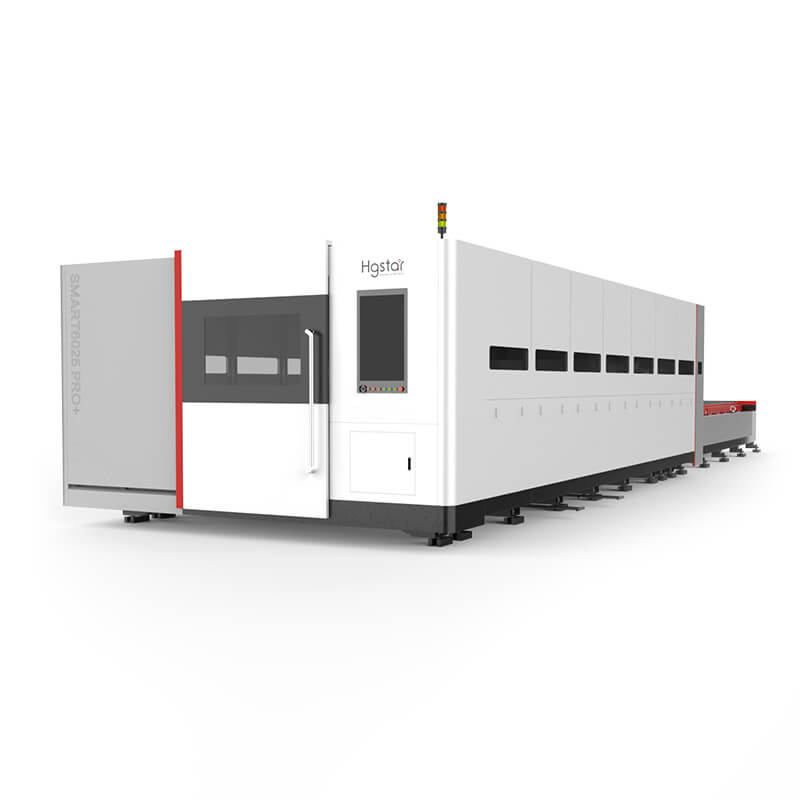

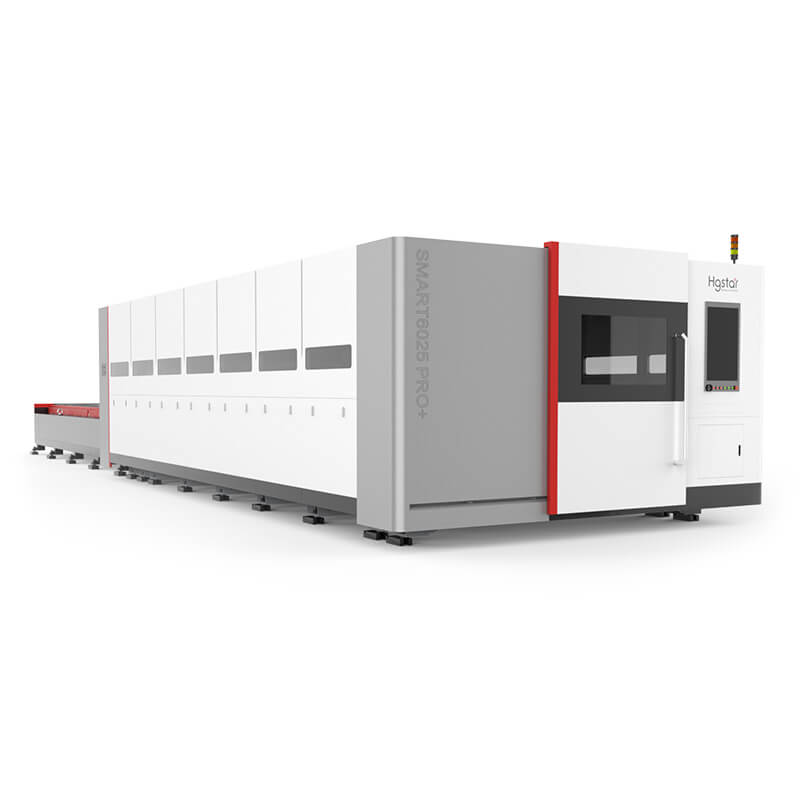

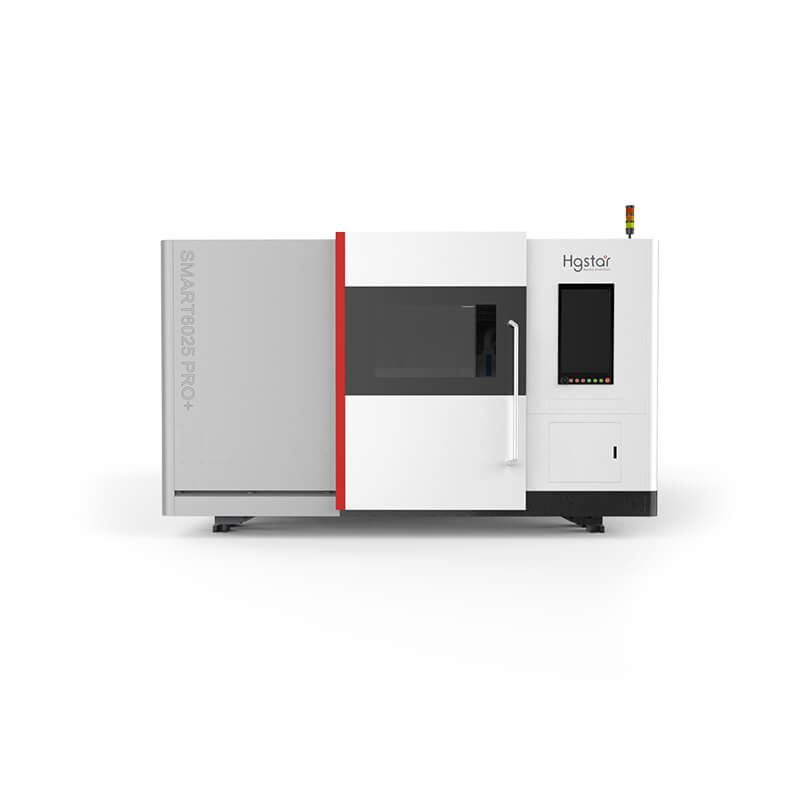

High-power fiber laser metal cutting machines with exchange trays offer faster cutting speeds and high power laser sources (6000w+) compared to other cutting solutions, now available at affordable prices for high power laser cutting machines.
High Power Fiber Laser Cutting Machine Parameter
|Machine Model||SMART Pro+|
|Cutting Area (L×W)||6100mm×2550mm|
|Laser Source||6000W – 20000W|
|CNC System||FSCUT 5000|
|Laser Cutting Head||BM115 F200mm Pro Cutter 2.0 F200|
|Max Moving Speed||120m/min, Acceleration is 1.2G|
|Position Accuracy (X and Y axis)||±0.02mm|
|Reposition Accuracy (X and Y axis)||±0.03mm|
|Power Supply Requirement||380V 50/60Hz 65KVA|
|Machine weight||≤17000 Kg|
Industrial Fiber Laser Metal Cutting Machine Video
Features of High Power Fiber Laser Cutting Machine
Security and non-pollution
With a completely enclosed design;The observation window is made of laser-protective glass that meets European CE standards.
Without Manual Focusing, Autofocus Laser Cutting Head
The software automatically adjusts the focusing lens to achieve automatic perforating and cutting of various thickness plates. The speed of automatically adjusting the focus lens is ten times faster than manual adjustment.
Fiber Lasers Source
Raycus Multi-module CW Fiber Lasers range in power from 1,000W to 6000W and feature high electro-optical conversion efficiency, high light beam quality, high energy density, wide modulation frequency, high reliability, long service life, maintenance-free operation.
Laser Cutting Machine Welded Bed
The high strength machine bed is treated with a stress relief annealing method at 600°C, which results in a strong structure rigidity; integral mechanical structures have the advantages of small deformation, low vibration, and extremely high precision.
Servo and Motor
JAPAN Fuji servo high speed srvo motor
Effectively reduce beam speed, make cutting and machine more stable, and extend machine life.
