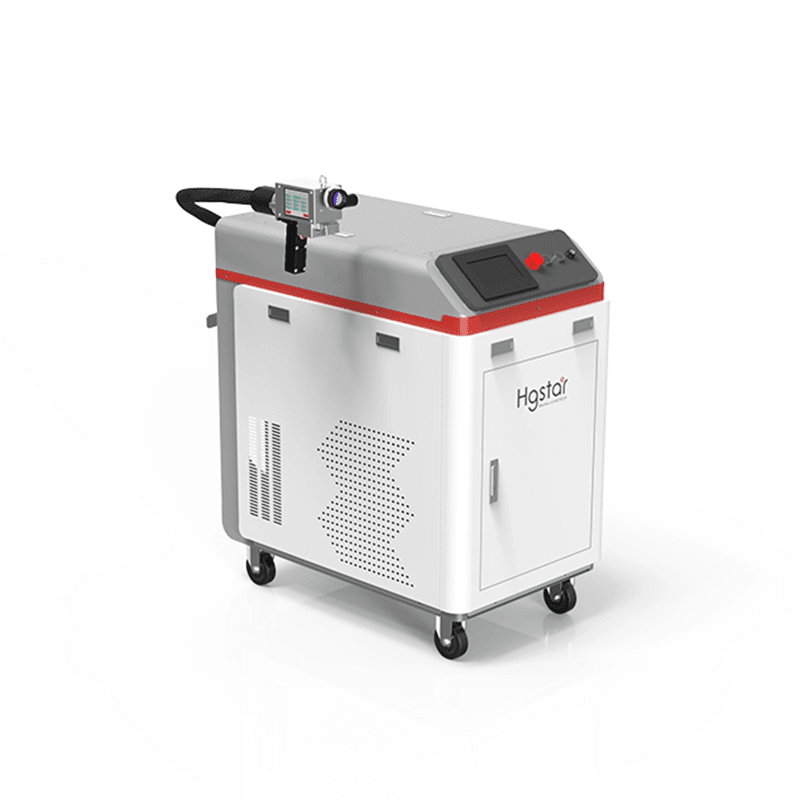

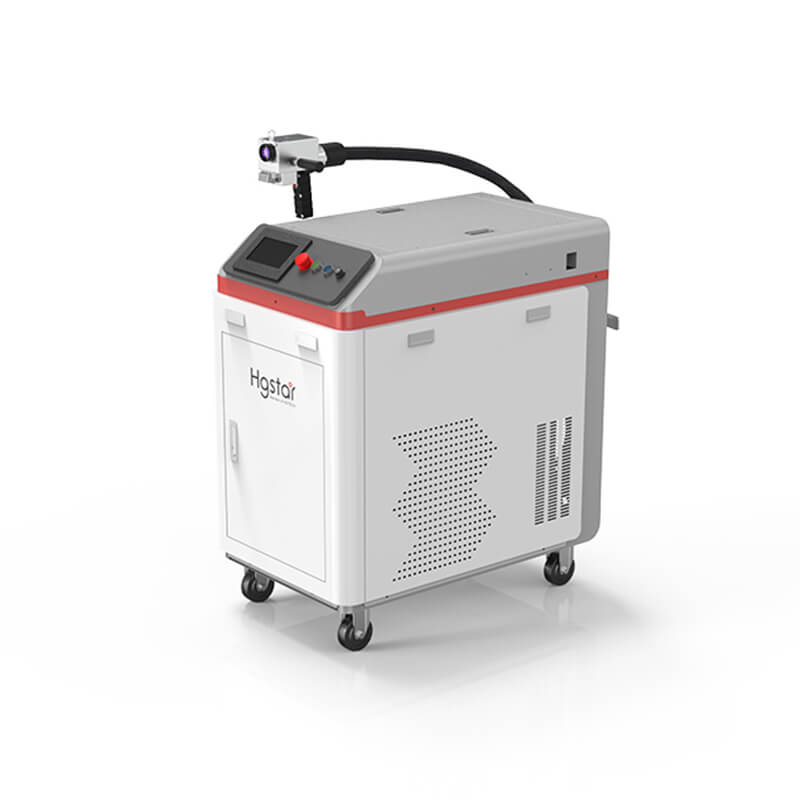

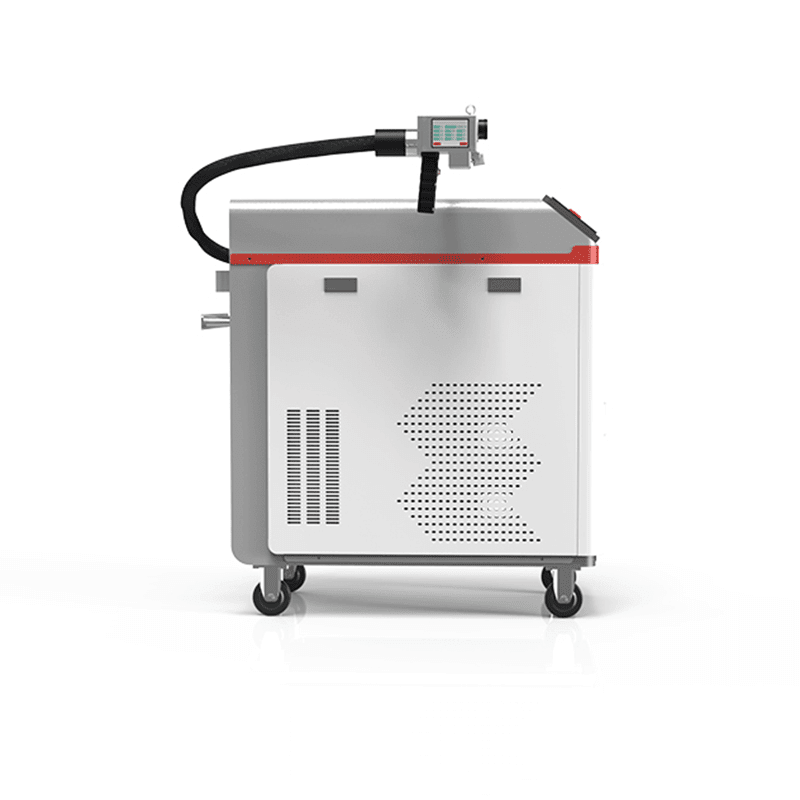

HC Series Portable Laser Cleaning Machine

Laser Cleaning Machines, Both Manual and Automated Whether you need a handheld, manually loaded, or fully automated laser cleaning solution, our experts can assist you in selecting the right machine and options. Paint, oxide, rust, and other contaminants can be removed from metal surfaces using our machines. With laser texturing, they can also improve surface adhesion.

Portable Laser Cleaning Machine Parameter

MODEL		SMART HC
operating environment
voltage		220V / 380V 50 / 60HZ
power consumption		< 8000W ( including water cooler )
working temperature		5℃~ 40℃
optical parameters
laser power	CW	1000W / 1500W / 2000W
	PLUSE	100W / 200W / 300W / 500W
Wavelength type		Continous / Pluse
Power stability		better than 5%
Power adjustment range(%)		10-100 (gradient adjustable)
Repetition frequency(KHz)		20-200 (gradient adjustable)
Fiber length		5-10m
Cooling method		Water-cooled
Cleaning head parameters
Scanning range		5mm ~ 120mm , Continuously adjustable
Focal length of field lens ( mm )		160mm (Optional 160mm-500mm )
Depth of focus		max 10mm
Mechanical parameter
Overall size		about 1055mmx620mmx1090mm
Total Weight		about 190K
cleaning head weight		about 1.9kg ( including isolator)
Operation method		hand-held / automated

Portable Laser Cleaning Machine Video

Product Details Display

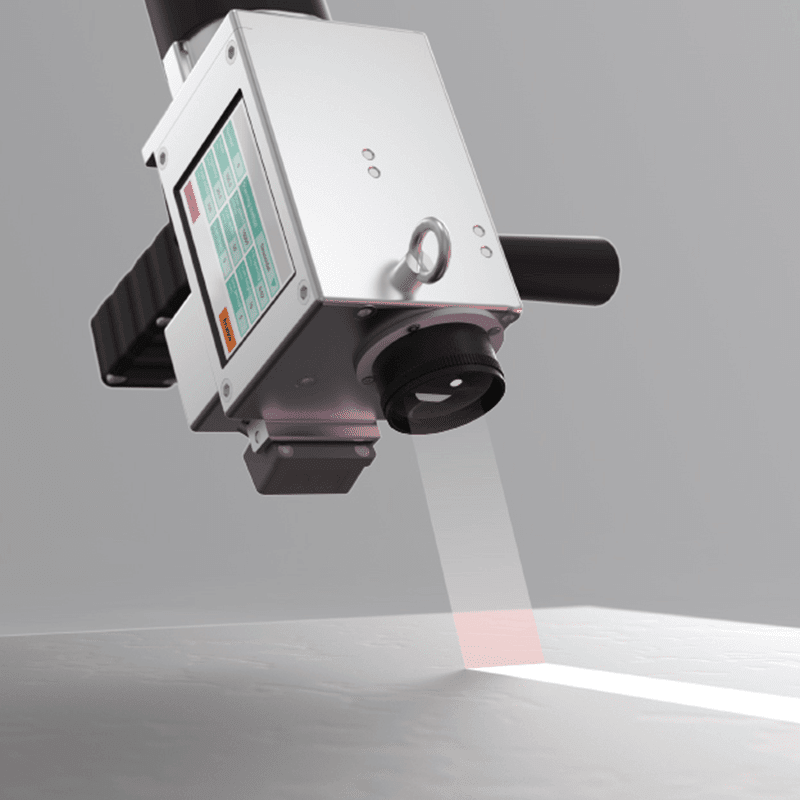

Wobble cleaning heads

The newly designed cleaning head is comfortable to hold and equipped with touch display, which is convenient to adjust various parameters at any time

Multiple Scanning Modes

Six cleaning modes can be provided (only one linear mode for single axis ), which can be switched freely according to the actual scene requirements.

Laser Cleaning Solutions

Laser cleaning machine can be used for metal rust removal, oil cleaning, local quenching, surface roughening, coating removal, weld cleaning

Benefits of Laser Cleaning

Using a laser cleaning machine, you can remove rust and contaminants efficiently and quickly, and you can choose the parts to be removed and realize the automation of cleaning.

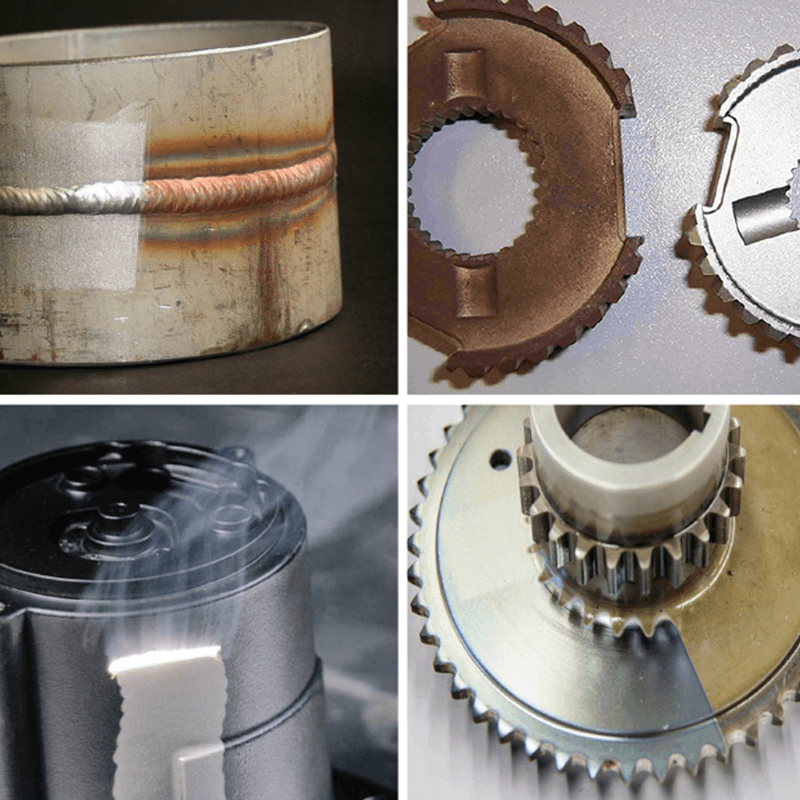

Laser cleaning samples

Laser cleaning can remove various types of contaminants from the surface of various materials, to achieve a cleanliness that can not be achieved by conventional cleaning. It can also selectively clean the material surface without damaging the material surface
