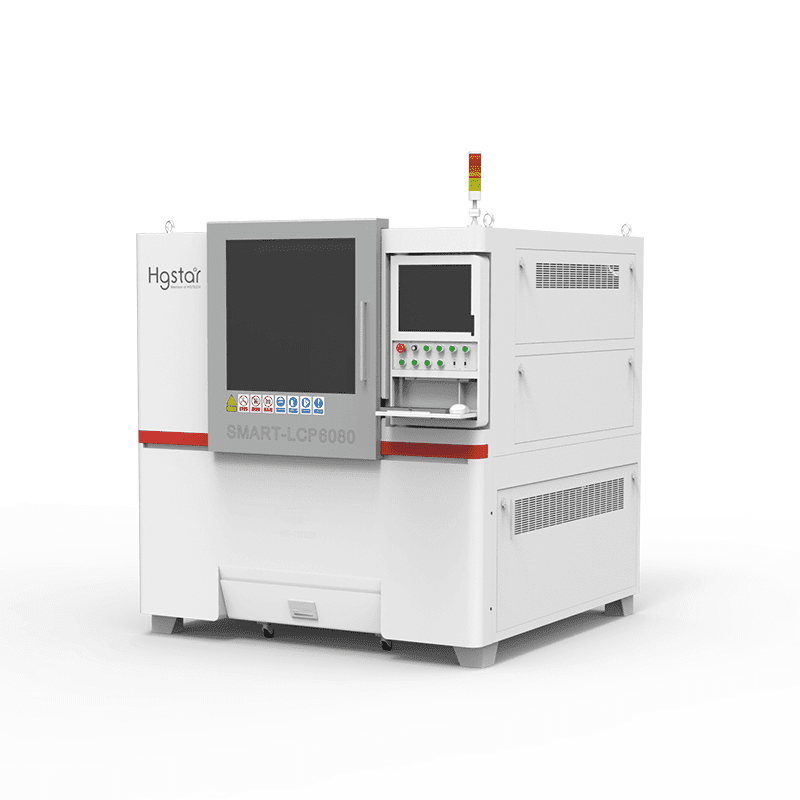

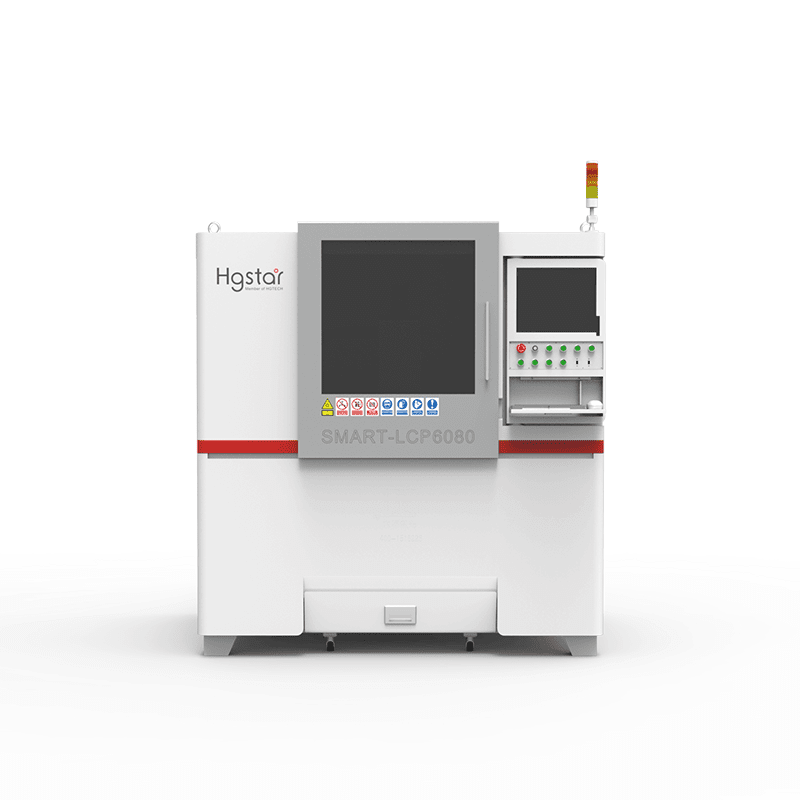

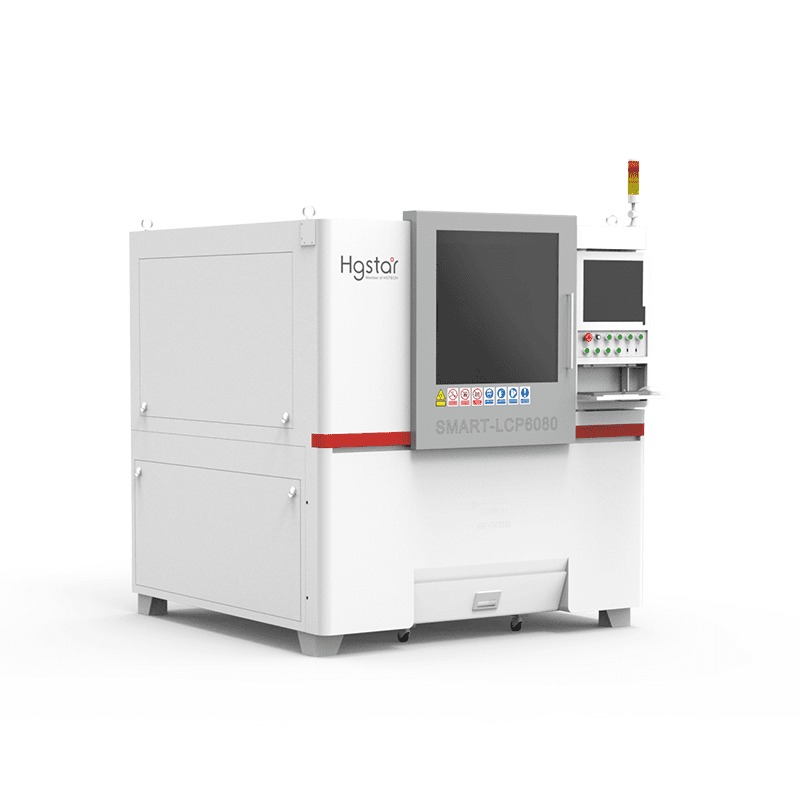

High Precision Fiber Laser Cutting Machine
Model: SMART LCP Series
Category: Laser Cutting Machine
Brand Name: HGSTAR
Laser power: 1000W-6000W
Stock: 20 units in stock
Uses: It can cut stainless steel, carbon steel, galvanized sheet, electrolytic sheet, brass, aluminum, various alloy sheets, rare metals and other metals.
The fiber laser cutting machine is the best choice for home use with the small volume. Especially equipped with the protective device, it can keep operators more safe. This fiber laser cutting machine can realize what you want to cut on metal material with high power. That is to say that you can approach it with the minimum money.
Fiber Laser Metal Cutting Machine Parameter
MODEL | Smart LCP 4050/6080 |
---|---|
Laser Power | 500W、1000W、1500W、2000W、3000W、QCW750 |
Wavelength | 1070 ± 10nm |
CNC System | FSCUT 2000 |
Max Moving Speed | 60m/min, Acceleration is 1G |
Position Accuracy (X and Y axis) | ±0.03mm |
Reposition Accuracy (X and Y axis) | ±0.03mm |
Power Supply Requirement | (220V 50/60Hz)(380V 50/60Hz) |
Fiber Laser Metal Cutting Machine Video
Features of Fiber Laser Metal Cutting Machine
High stability machine bed
The equipment platform adopts marble platform to eliminate vibration error when the linear motor moves. Marble is not sensitive to temperature deformation, so as to reduce the influence of weather on the equipment.
Double-layer sealing structure
The guideway of the equipment adopts double-layer sealing structure with independent design, which effectively prevents dust from affecting the linear motor and guideway.
Operation screen rotating shaft design
convenient for operators to debug parameters, the software uses universal software, cutting path automatic optimization, reduce the use of difficulty, compatible with a variety of file formats DXF, Gerber, etc.
Visual assist positioning
ensure accurate processing position, higher fault tolerance rate.
The equipment adopts the upper air shower structure
So that the upper part of the equipment produces downward air pressure, effectively control the dust of the upper products of the equipment, but also reduce the influence of dust on the moving parts, matching our company’s air suction device better effect.
Related Projects
Related Videos
Related Stories
Are you interested in our product?
Please feel free to contact us, we would like to help you with advice and support.
model | SMART LCP |
---|
