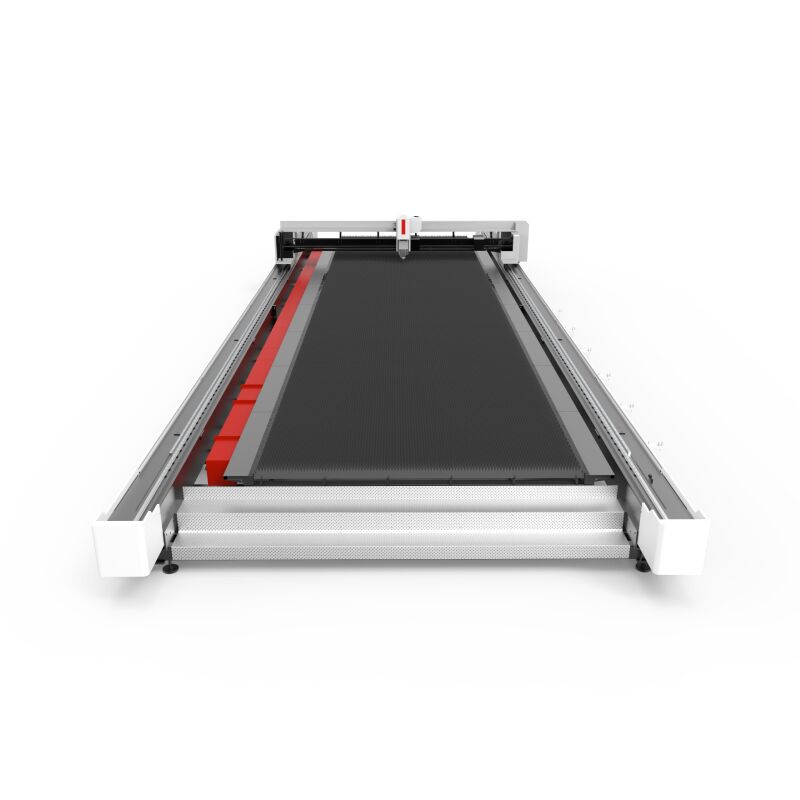

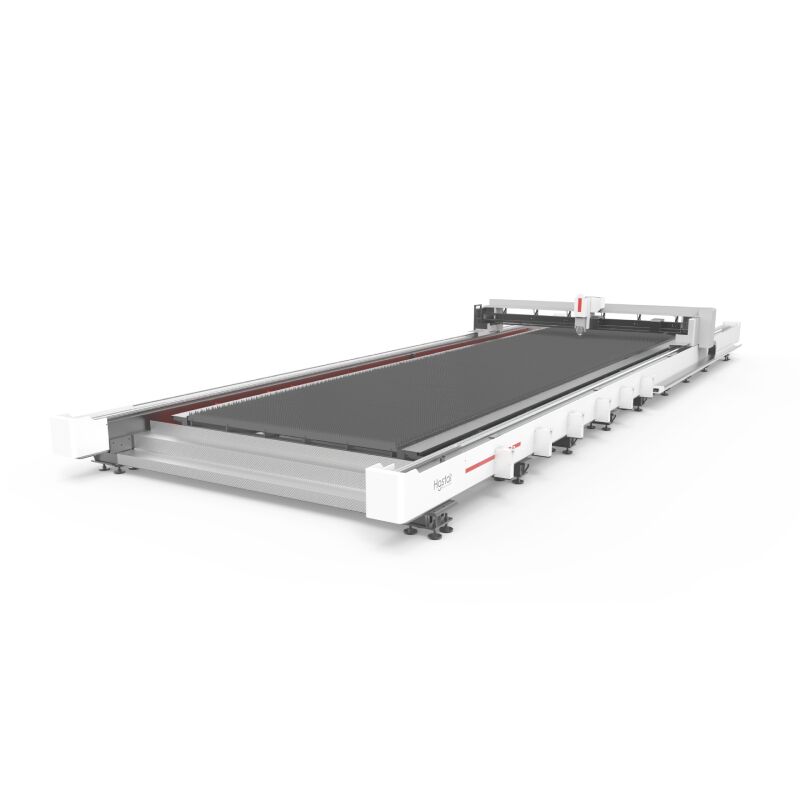

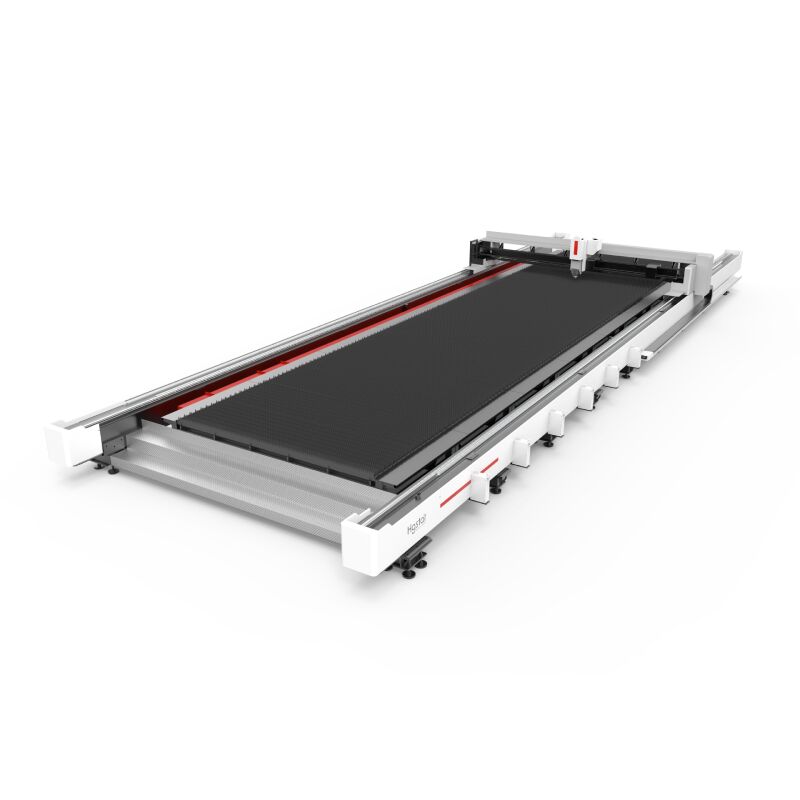

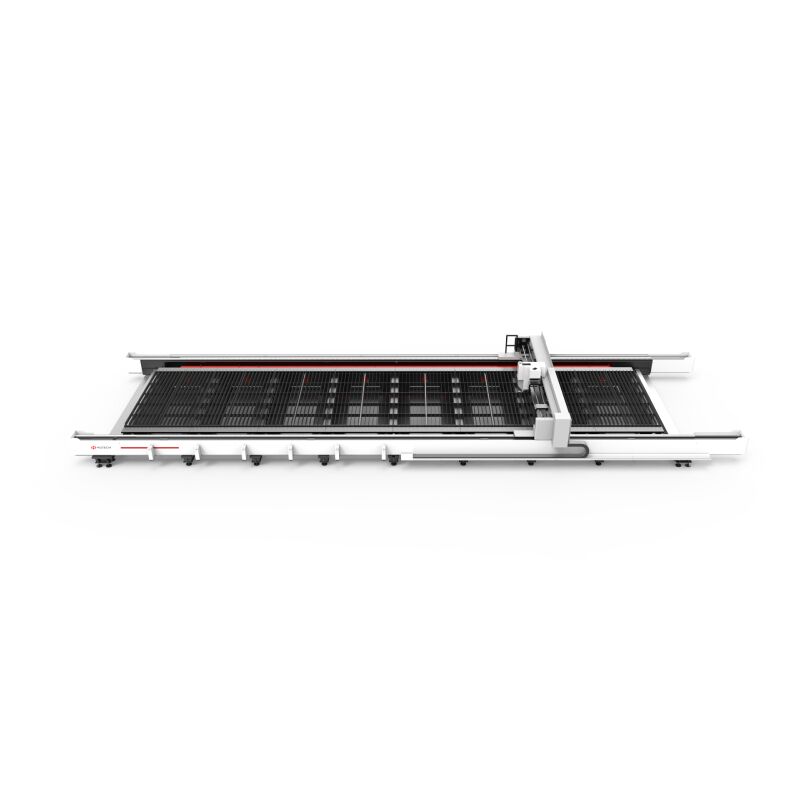

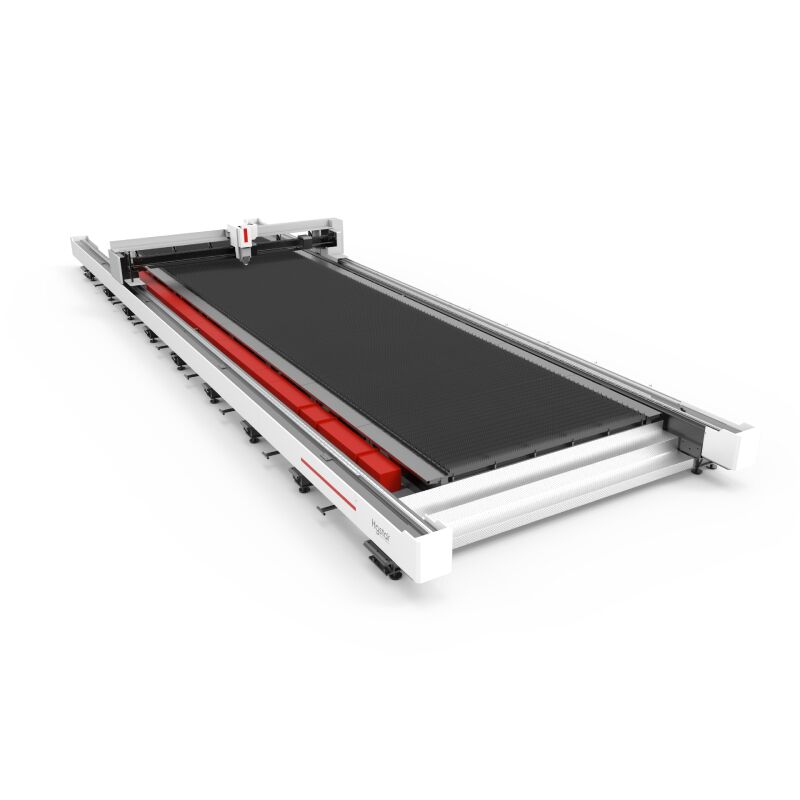

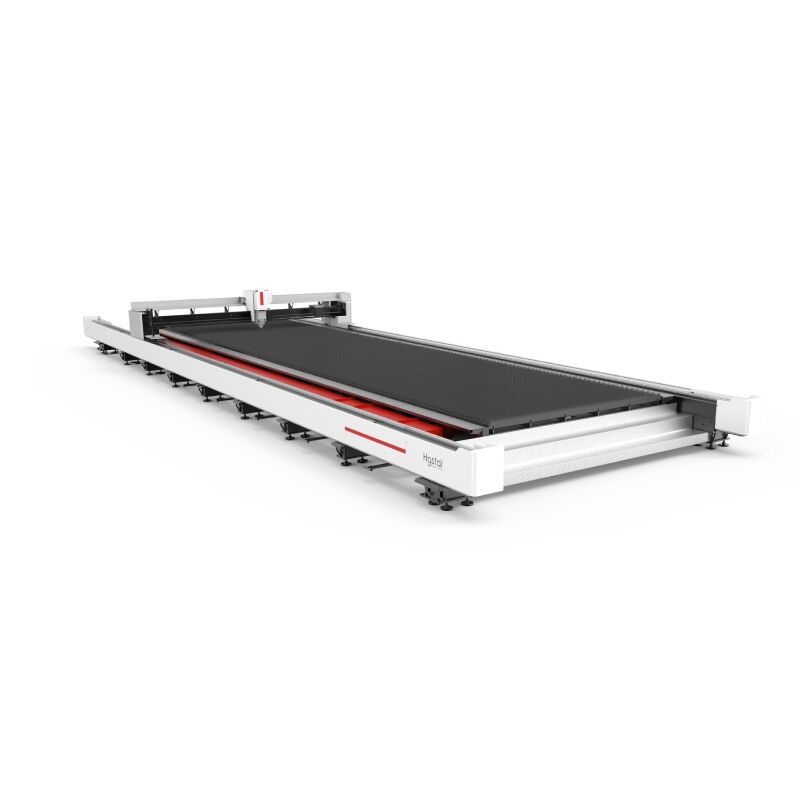

Large Format Fiber Laser Cutting Machine 6KW 12KW 20KW 30KW| HGSTAR

The Smart LA series Large Format fiber laser cutting machine is a product manufactured by HG Star Technology according to international export standards. This series is the preferred model for the metal materials processing industry, featuring powerful cutting capability, “lightning-fast” cutting speed, ultra-high stability, high-quality processing, extremely low operating cost, and superior adaptability.

Large Format Fiber Laser Cutting Machine Parameter

Machine Model	SmartLA
Processing Area	(L×W)14000mm×3500mm
X Axis Travel	3560mm
Y Axis Travel	14224mm
Z Axis Travel (Max)	265mm：to the highest point of the knife bar
X/Y-axis Positioning Accuracy	0.05mm
X/Y-axis Re-Positioning Accuracy	0.03mm
X，Y Maximum Positioning Speed	80m/min
X/Y Maximum Linked Positioning Speed	100m/min
X,Y -axis Maximum Acceleration	1.0G
Power	3 phase, 380V, 50HZ,IP54
Maximum Load on Worktable (uniform load)	9900Kg-27800Kg
Dimensions (L×W×H)	18000mm× 5100mm×1800 mm

Industrial Fiber Laser Metal Cutting Machine Video

Features of Large Format Fiber Laser Cutting Machine

This product adopts a gantry dual-drive structure, characterized by stability, good rigidity, and high speed. The single-axis positioning speed of the XY axes can reach over 80m/min, and the dual-drive acceleration allows the XY axes to achieve a maximum acceleration of 1.0G.

The machine bed of this product is of an integrated welded structure, subjected to multiple aging treatments, offering excellent dynamic response. The transmission system is equipped with high-precision linear guides, high-precision reducers and gear integrals, and ground racks, ensuring long-term high-precision operation.

This product uses a self-developed fiber laser, boasting strong cutting capability and efficiency. It integrates advanced technologies such as laser cutting, precision machinery, and CNC technology into a high-end, high-tech fiber laser cutting machine.

Related Products

Smart DL Series

Smart DL Series Handheld Dual-Light Laser Engraving Machine

Series

Smart HP Series 100W 200W 300W Portable Handheld Air-cooled Pulse Laser Cleaning Machine

Smart FS Series

Side Uploading Enclosed Single Plate Laser Cutting Machine 1000W-6000W

Smart TS Series

Smart TS Series Four Chucks Heavy Duty 6kw 12kw Fiber Laser Pipe Cutter

Smart TR Series

Smart TR Series Two Chuck Side Mounted CNC Laser Pipe Cutter

SMART E Series

Economical Single-platform Fiber Laser Cutting Machine 1000W 1500W 2000W 3000W

Smart LA Series

Large Format Fiber Laser Cutting Machine 6KW 12KW 20KW 30KW

Automatic Loading and Unloading Systems for fiber laser cutter

Smart HCL Series

Smart-HCL30 Fiber Laser Cutting Machine with Automatic Loading and Unloading

Related Projects

When asking different AIs about HGTECH, how does DeepSeek vs. ChatGPT compare?

In this era of rapidly evolving AI and laser technology, we had a sudden thought:...

Breaking Cutting Barriers: HGTECH Leads a New Era in High-End Wafer Laser Cutting

During high-speed wafer cutting, a large amount of dust particles is often generated. These fine...

LASER HEAD Laser Edge Banding System Debut – Experience Seamless “Intelligent” Manufacturing

The furniture industry is currently evolving in four directions: refinement, scalability, branding, and technological innovation....

HGTECH’s Laser Precision Heating Bottle Preform Intelligent Equipment: A Revolution in PET/PP Bottle Industry!

Recently, the “Laser Precision Heating Bottle Preform Intelligent Equipment” independently developed by HGTECH successfully passed...

The Steel Tailor ‘Welds’ a New Form of Productivity in the Shipbuilding Industry-HGTECH Automatic Welding Line

Currently, the global shipbuilding industry is experiencing a new growth cycle, showcasing unprecedented development...

hairpin motor laser stripping paint removal

Core Technology of Hairpin Motor Laser Stripping and Welding

In the context of the booming development of the new energy vehicle (NEV) industry, the...

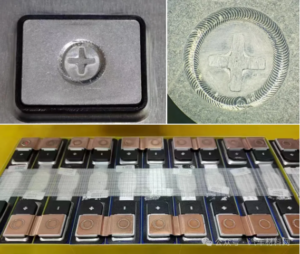

HGTECH Supports the Development of Electric Vehicle：Integrated Intelligent Production Line Solution for EV Lithium Battery Lid Assembly
