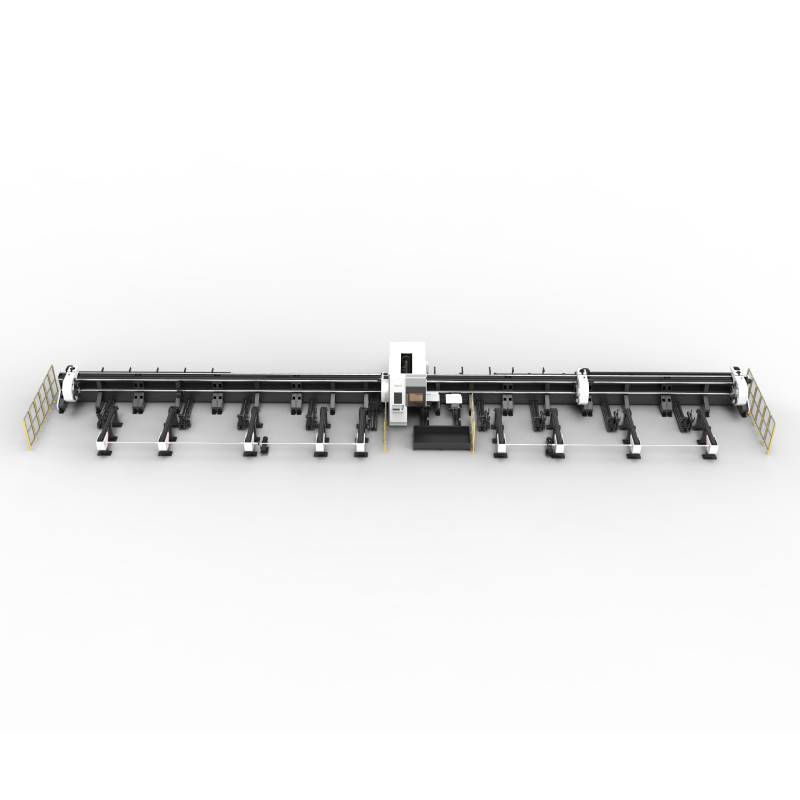

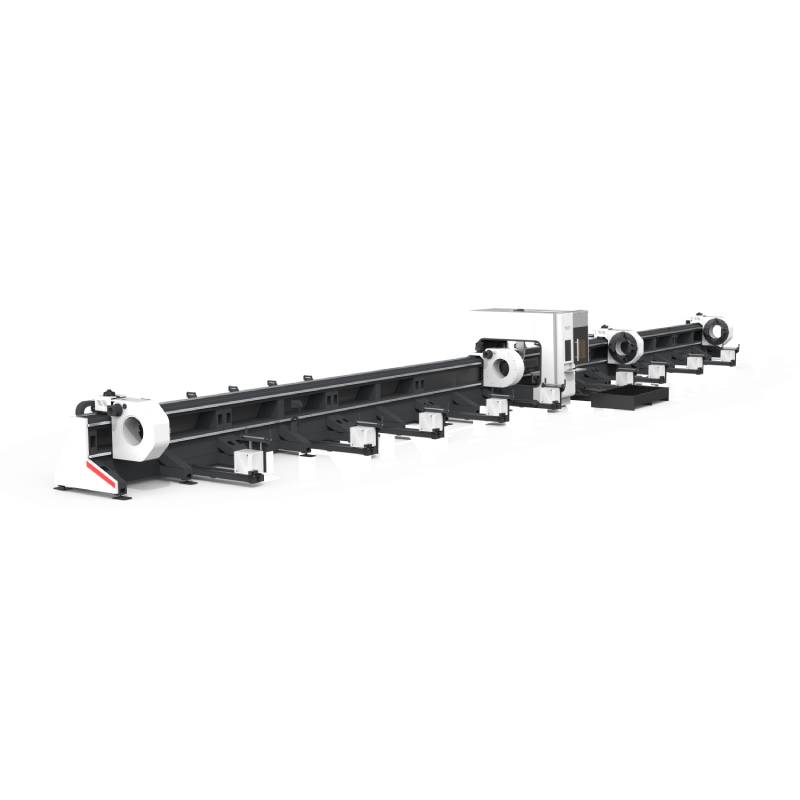

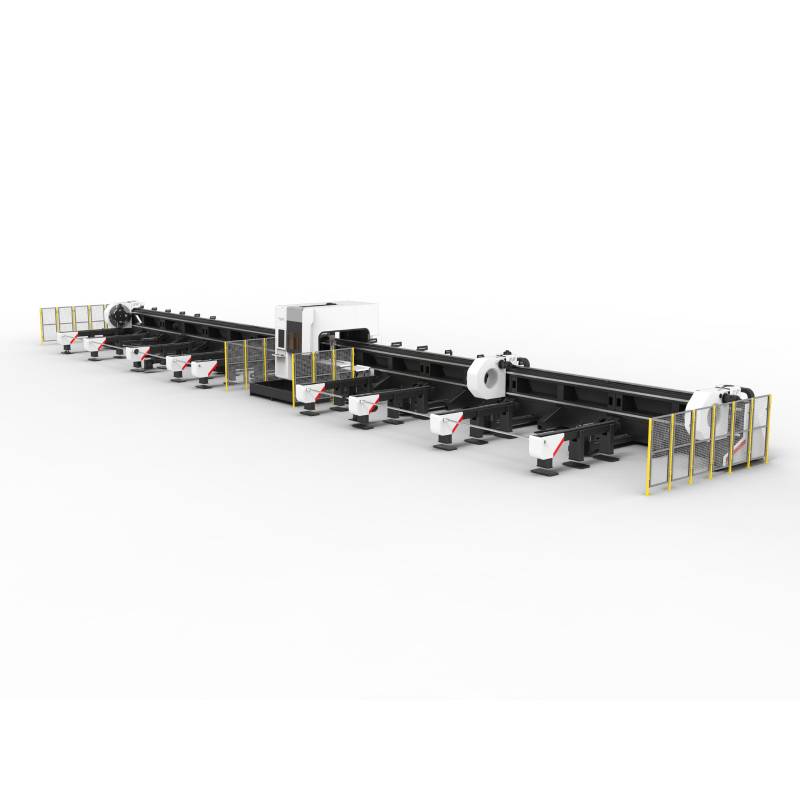

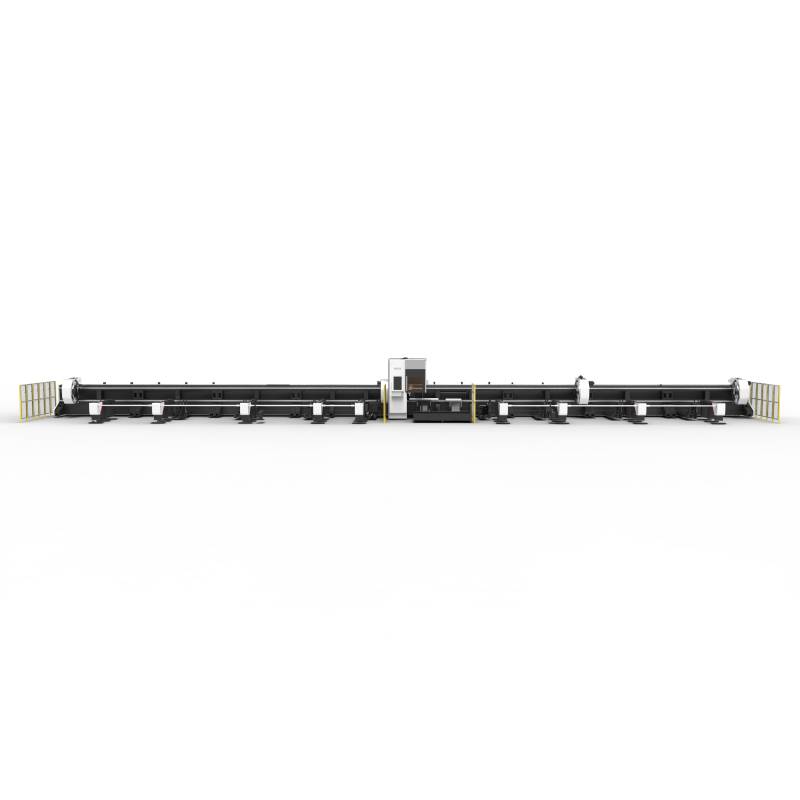

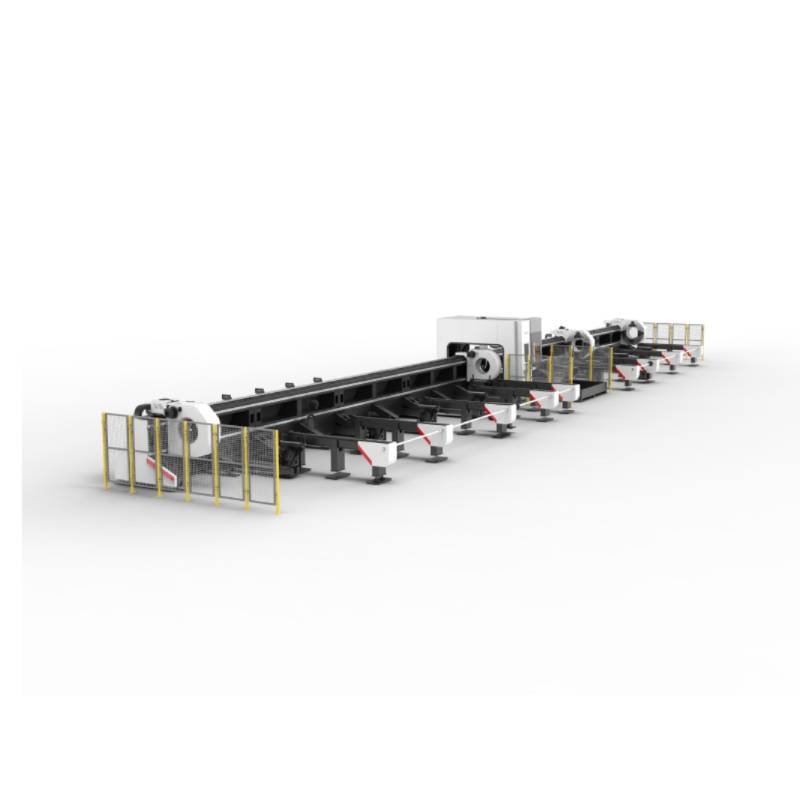

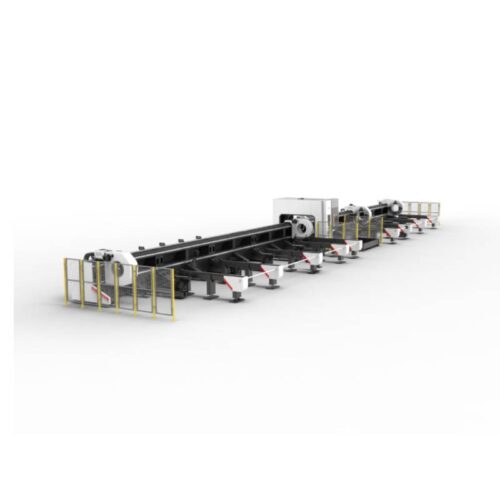

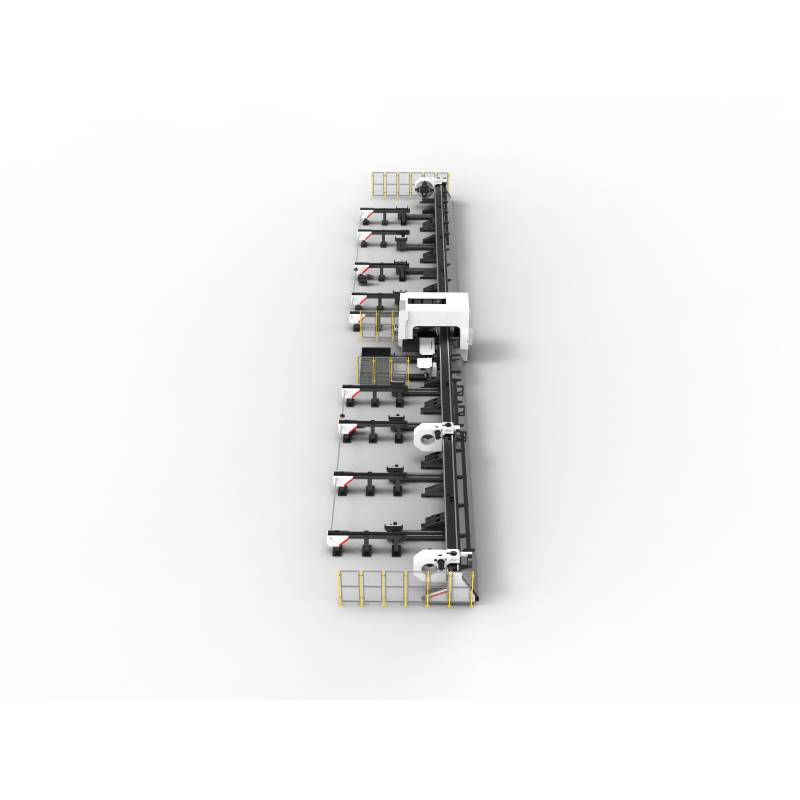

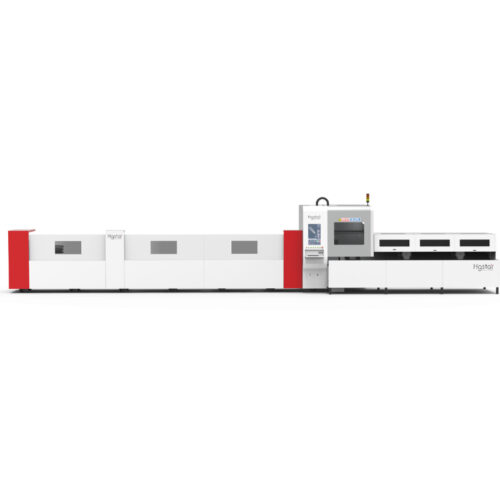

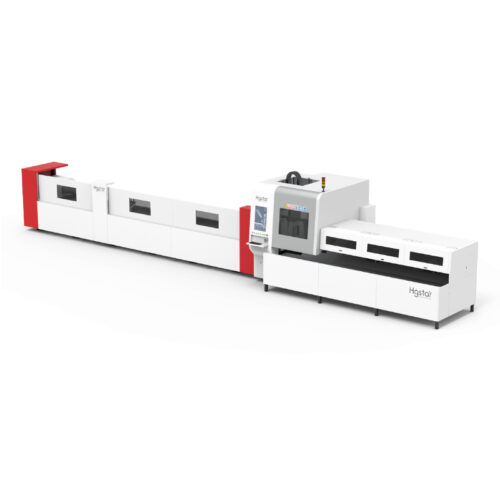

Smart TS Series Four Chucks Heavy Duty 6kw 12kw Fiber Laser Pipe Cutter

Model:SMART TS6565-350、 TS6565-500、 TS1212-350、 TS1212-500

Category: Laser Tube Cutting Machine

Brand Name: HGSTAR

Laser power: 6000W 12000W

Stock: 20 units in stock

Uses: A laser tube cutter will replace mechanical drilling, milling, sawing, punching or cleaning of burrs and other processing procedures that require different metal pipe cutters and hard tools, and realize the cutting, chamfering, and cutting of complex pipe structures.

Smart TS Series Four Chucks 6kw 12kw CNC Laser Pipe Cutter is manufactured by HGSTAR according to international export standard. This series of equipment is the preferred model for the metal tube processing industry.

SmartTS Series Four Chucks 6kw 12kw CNC Laser Pipe Cutter Key Features:
1.Stable Structure: Ensures superior cutting precision.
2.Standard Chain-Type Semi-Automatic Loading and Unloading Mechanism: Streamlines material handling for improved efficiency.
3.Dual Independent Electrical Cabinets: Separates high- and low-voltage systems for reliable operation.
4.Optional Bevel Cutting: Available to meet specific processing needs.
5.Modular Design: Offers model flexibility based on customer requirements and operational conditions (e.g., TS6565-350, TS6565-500, TS1212-350, TS1212-500).

SmartTS Series Four Chucks 6kw 12kw CNC Laser Pipe CutterParameter

MODEL TS6565-350、 TS6565-500、 TS1212-350、 TS1212-500
Industry Applications Metal Processing Industry, Engineering Machinery Industry,
Chemical and Power Industries,Customized Production
Power Range 6000W、12000W
Processing Tube Diameter Round Tube：20-350 Square Tube：20-350 / Round Tube：20-500 Square Tube：20-500
Tube Processing Length 6500MM / 12000MM
Single Tube Cutting Length ≤6500mm / ≤12000mm
Idle Running Speed 60m/min
Acceleration 0.8G
Chuck Rotation Speed 150r/min
Chuck Load Capacity Precision Tubes: 350 Chuck：600KG
Square and Round Tubes: 350 Chuck：1200KG / 500 Chuck: 1600KG
(500 Chuck supports square and round tubes only)

Features of SmartTS Series Four Chucks 6kw 12kw CNC Laser Pipe Cutter

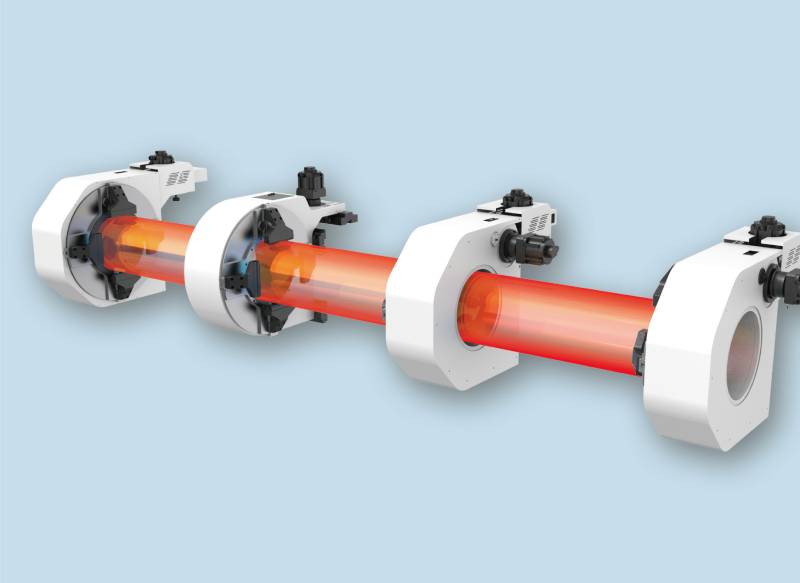

3+1 Chuck Structure

Enables 0 tailings, improving material utilization and work efficiency.

Front and Rear Chuck Division

The front chuck cuts while the rear chuck unloads, enhancing efficiency.

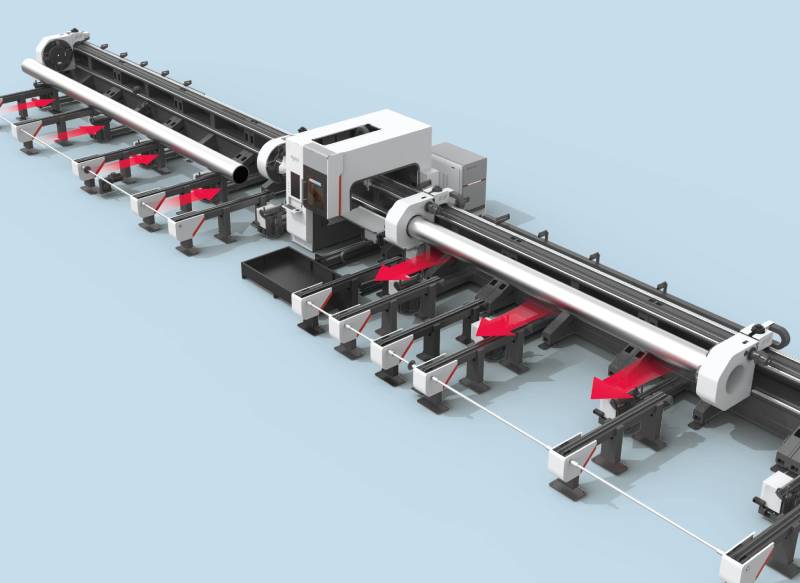

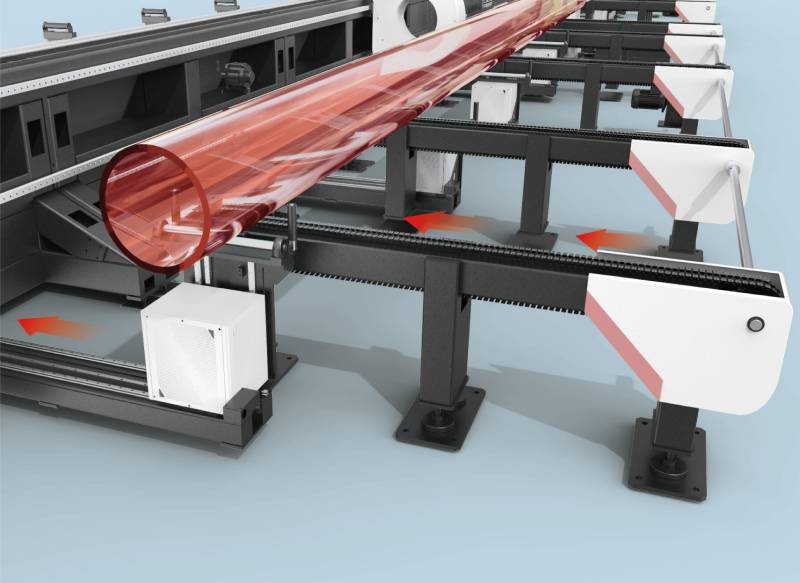

Semi-Automatic Loading and Unloading

Boosts efficiency with a flexible rack for tubes of various lengths.

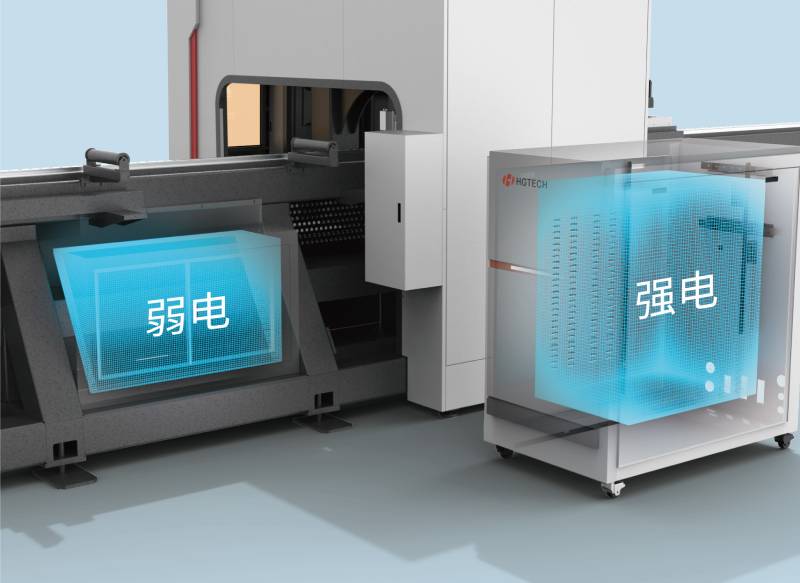

Dual Electrical Cabinet Design

Separates strong and weak currents to ensure stable operation and more efficient cutting.

Are you interested in our product?

Please feel free to contact us, we would like to help you with advice and support.

    Please prove you are human by selecting the Flag.

    model

    Smart TS

    Reviews

    There are no reviews yet.

    Be the first to review “Smart TS Series Four Chucks Heavy Duty 6kw 12kw Fiber Laser Pipe Cutter”

    Related products

    SMART Talos Series

    Three Chuck Tube Laser Cutting Machine

    Smart Tflx Series

    Smart Tflx Series Two Chuck Tube Laser Cutting Machine 2000W 3000W 6000W

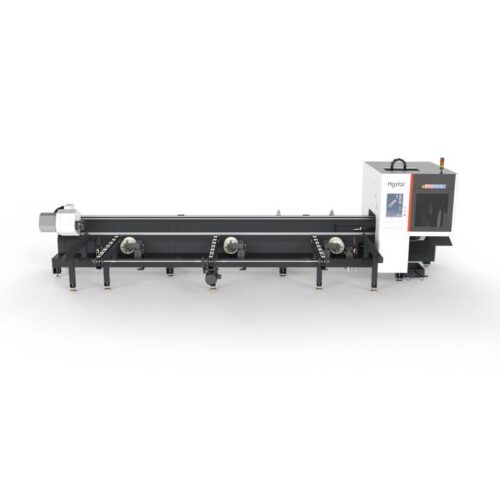

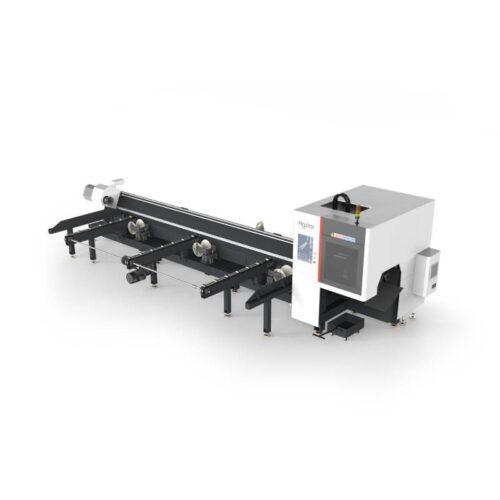

    Smart TR Series

    Smart TR Series Two Chuck Side Mounted CNC Laser Pipe Cutter

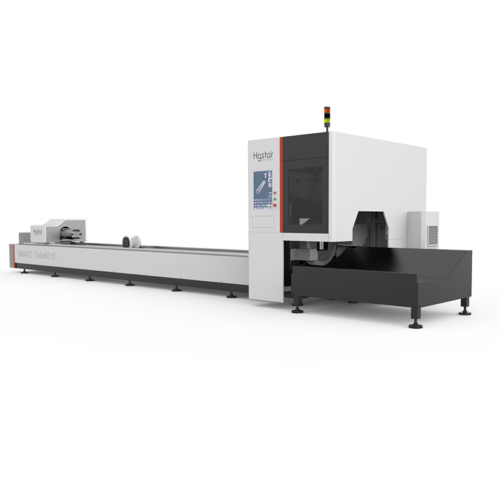

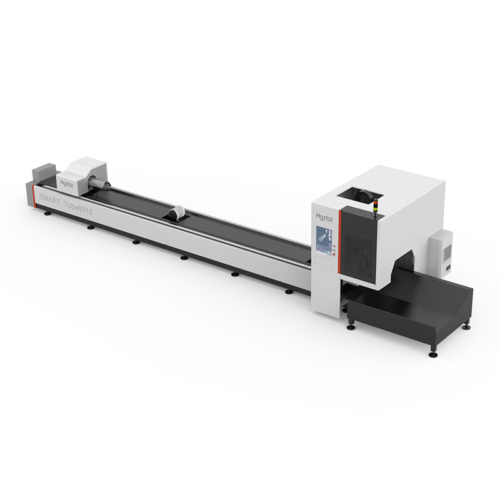

    Smart Tube Series
