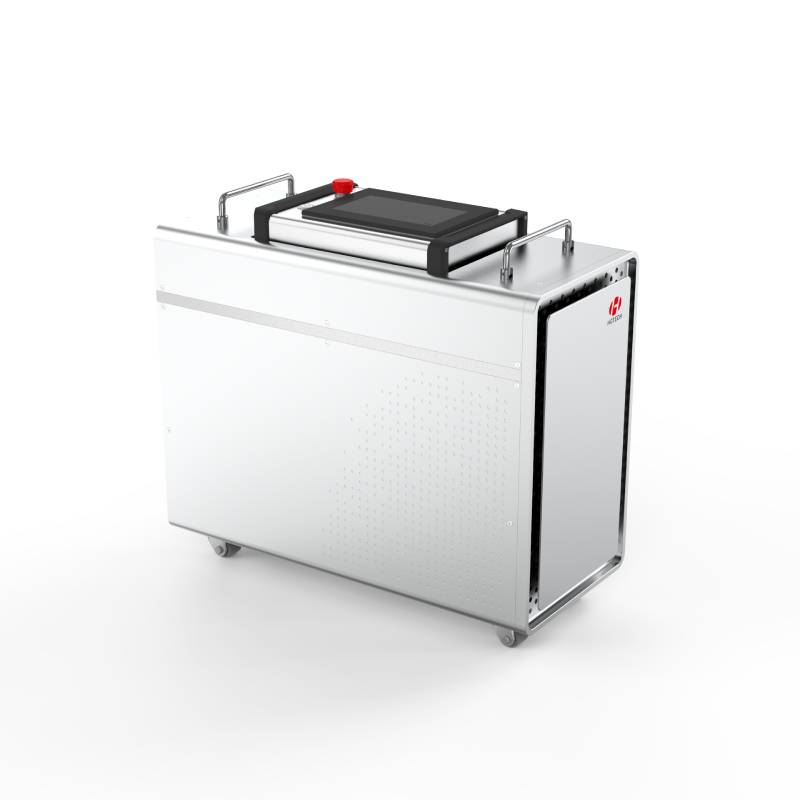

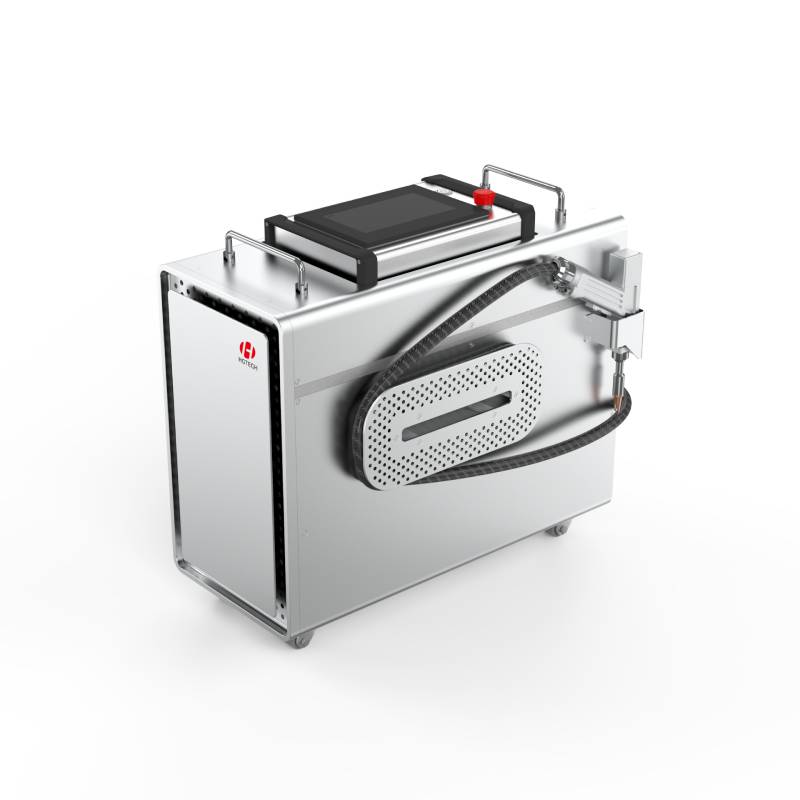

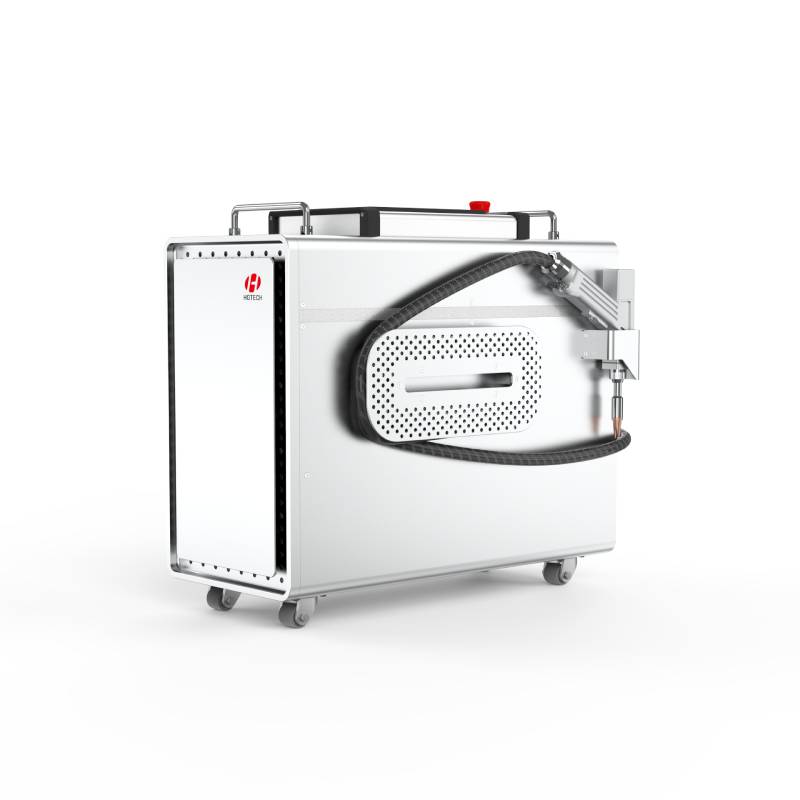

Model: SMART HWA Series
Category: Air-cooled laser welding machines
Brand Name: HG Laser
Laser power: 1500W
Application: cabinet kitchen, staircase elevator, shelf, oven, stainless steel door and window guardrail, distribution box, stainless steel furniture and other industries.
The Air-cooled laser welding machines has the best fibre optic laser beam for fast welding speed, high quality welds and no consumables. No fear of tank freezing in low temperature areas, the air-cooled fibre laser welding machine is used for welding carbon steel, stainless steel, aluminium, copper and other metal plates.
| Machine Model | HWA-1500 |
|---|---|
| Laser wavelength | 1080nm |
| Laser power | 1500W |
| Weldable materials | Carbon Steel, Stainless Steel, Aluminum |
| Fiber | 20um, 10m |
| Modulation frequency | 20KHz |
| Energy Stability | <3% |
| Cooling Media | N2,Air |
| Net weight of the whole machine | 75kg |
| Light spot diameter | 0-5mm |
| Machine Model | HWA-1500 |
| Laser wavelength | 1080nm |
| Whole machine size (mm) | 352×700×666 (without wire feeder) |
| Whole machine power | 6.5KW |
| Recommended Environment | Clean and dust-free, no vibration source, 5℃-40℃, humidity < 70% |
The compact fuselage design makes it easy to transport to any construction site by putting it into the trunk of the car.
The volume is 14% of the hand-held laser welding machine
Compared with the icing problems often caused by water-cooled welding machines, Smart-HWA has more obvious advantages in cold areas
The dual fan design brings strong heat dissipation capacity and reduces energy consumption
Simple and clear operation interface, easy to master and easy to adjust
Second generation optical fiber transmission system
Better and more stable beam quality
