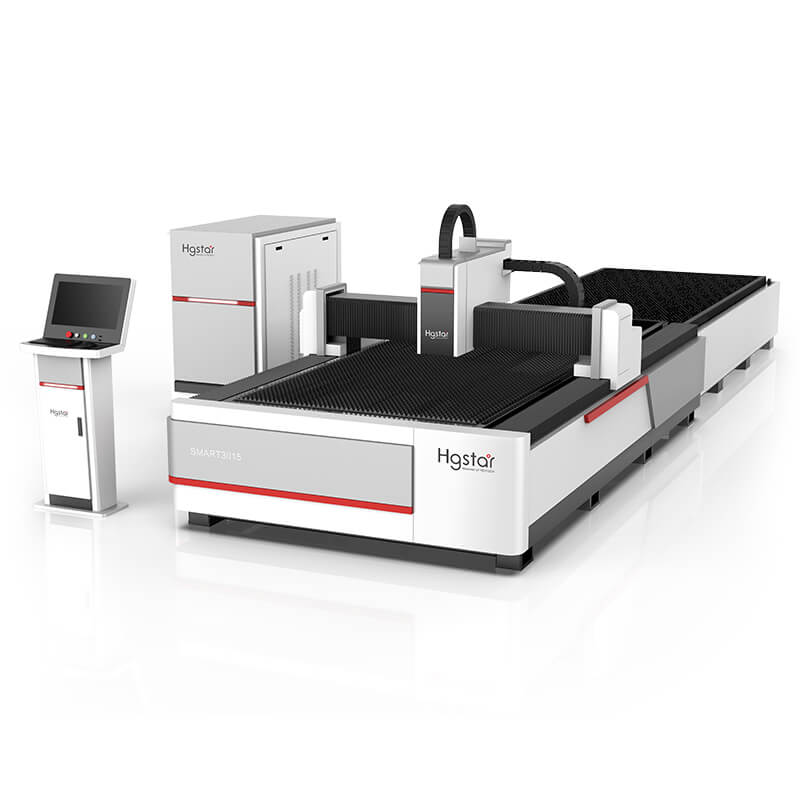

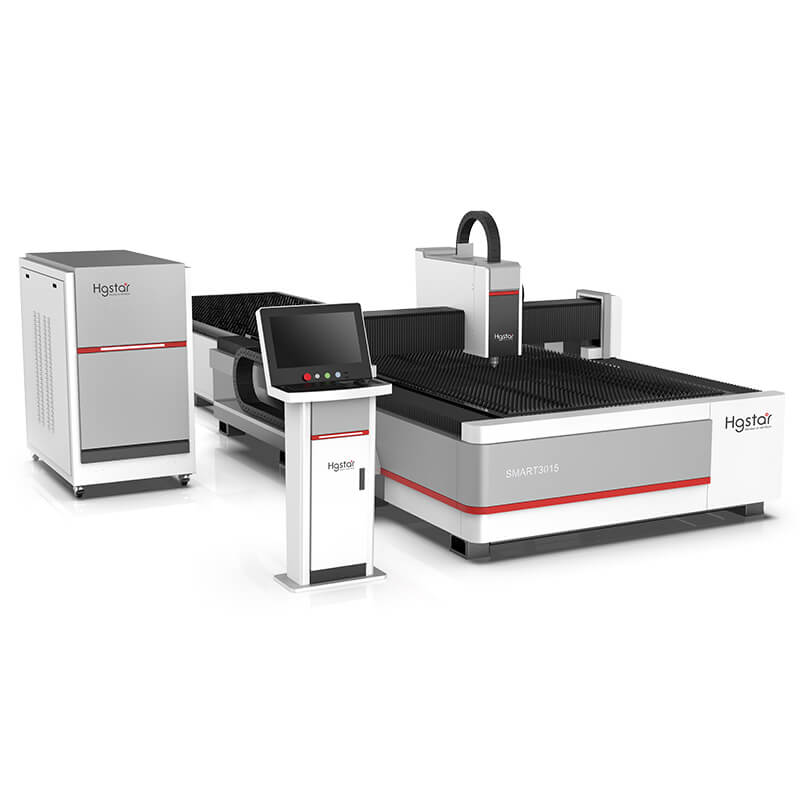

2023 best fiber laser metal cutting machine SMART-3015Plus has higher cutting speed and quality compared to other metal cutting solutions. It adopts an up and down exchange platform, able to finish the platform exchanging within 15s. Now the best fiber laser cutting machine for sale at affordable price.
Fiber Laser Metal Cutting Machine Parameter
| Machine Model | SMART 3015Plus、4015Plus、6015Plus、8015Plus |
|---|---|
| Cutting Area (L×W) | 3050mm×1530mm – 8130mm×1530mm |
| Laser Source | Fiber & 1000W – 6000W |
| CNC System | FSCUT 2000 |
| Laser Cutting Head | BM111 F125mm/BM114 F150mm/BM115 F200mm |
| Max Moving Speed | 100m/min, Acceleration is 1.0G |
| Position Accuracy (X and Y axis) | ±0.02mm |
| Reposition Accuracy (X and Y axis) | ±0.03mm |
| Power Supply Requirement | 380V 50/60Hz 45KVA |
| Machine weight | ≤5600 Kg |
| Appearance size | Major equipment 8750mm×2510mm×2100mm |
Fiber Laser Metal Cutting Machine Video
Features of Fiber Laser Metal Cutting Machine

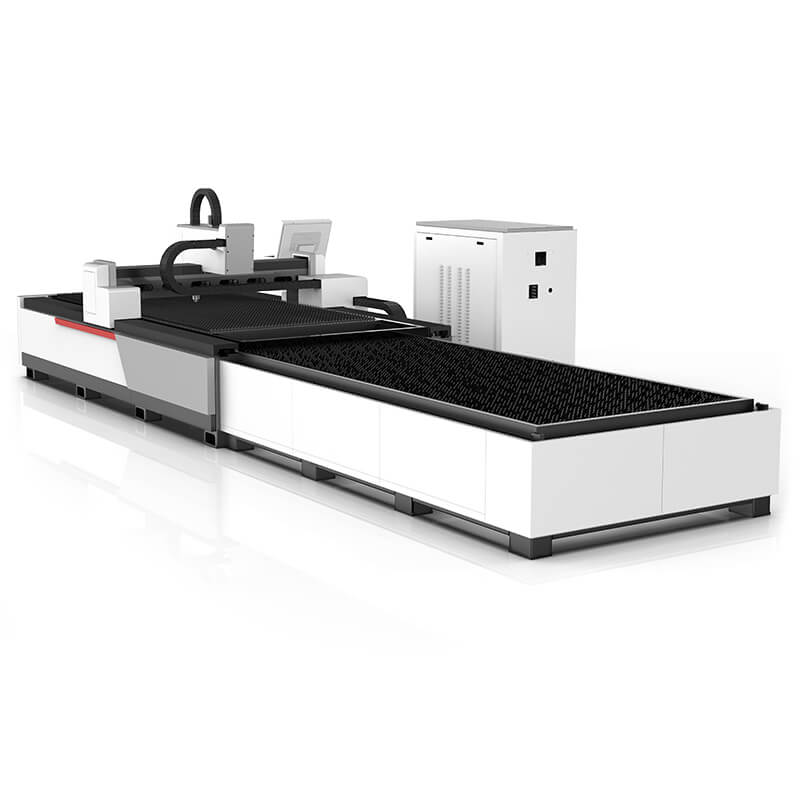

Parallel switching platform
It makes use of a parallel switching platform as well as a bilateral drive matching sprocket chain. Its characteristics include stability, good rigidity, and high speed.High-speed parallel exchange platform design, simultaneous exchange of two worktables, stable and reliable transmission mode, shorter exchange time, and improved frequency converter.
Without Manual Focusing, Autofocus Laser Cutting Head
The software automatically adjusts the focusing lens to achieve automatic perforating and cutting of various thickness plates. The speed of automatically adjusting the focus lens is ten times faster than manual adjustment.
Laser Cutting Machine Welded Bed
The high strength machine bed is treated with a stress relief annealing method at 600°C, which results in a strong structure rigidity; integral mechanical structures have the advantages of small deformation, low vibration, and extremely high precision.
Servo and Motor
JAPAN Fuji servo high speed srvo motor
Effectively reduce beam speed, make cutting and machine more stable, and extend machine life.
Active Anti-collision Function
Effectively reduce the damage rate of laser heads, help you save maintenance cost.
Beam made of cast aluminum
Aluminum monolithic cast beam, light weight, high strength, no deformation Light crossbeams, which are molded and framed using integral steel mold and die-casting technology, give equipment a high operation speed, improving processing efficiency and quality.
