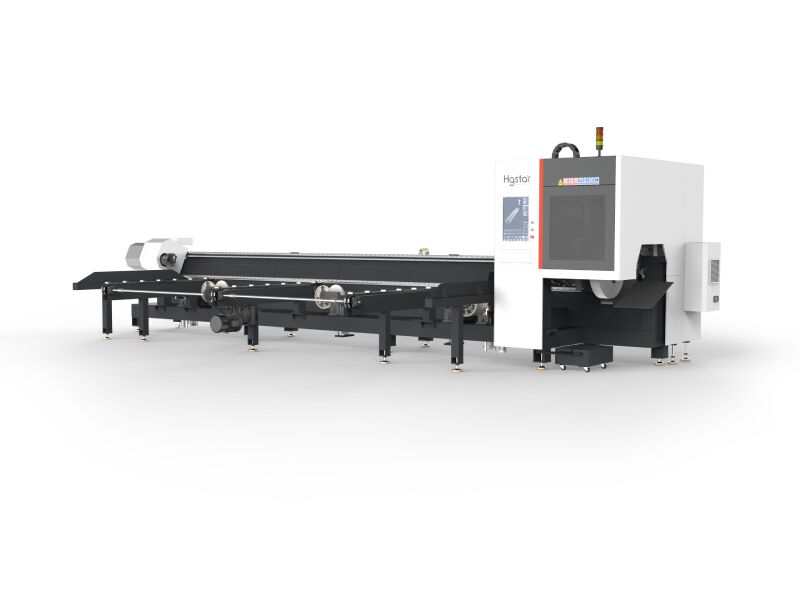

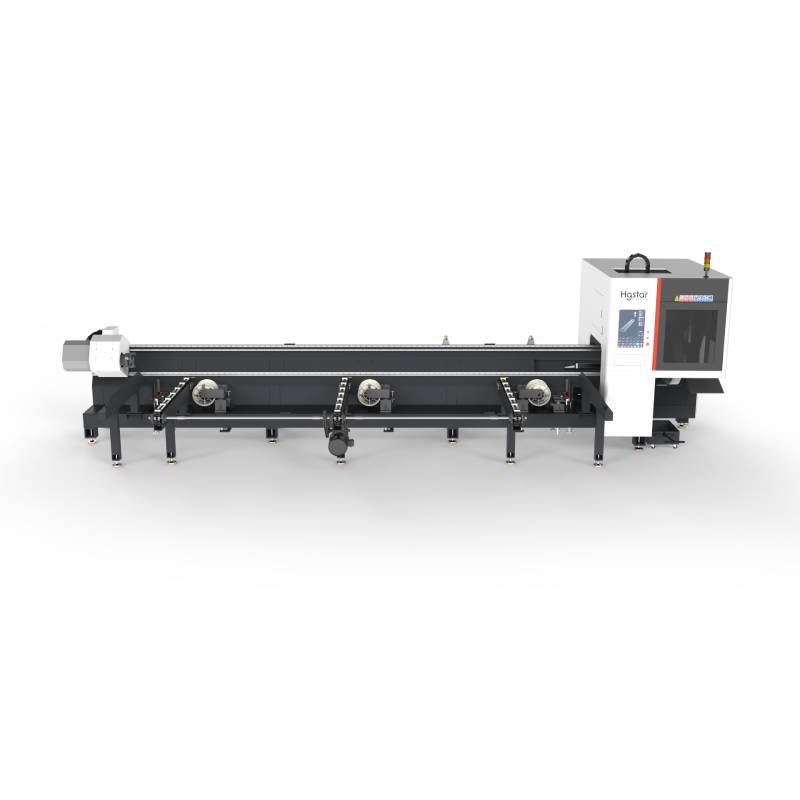

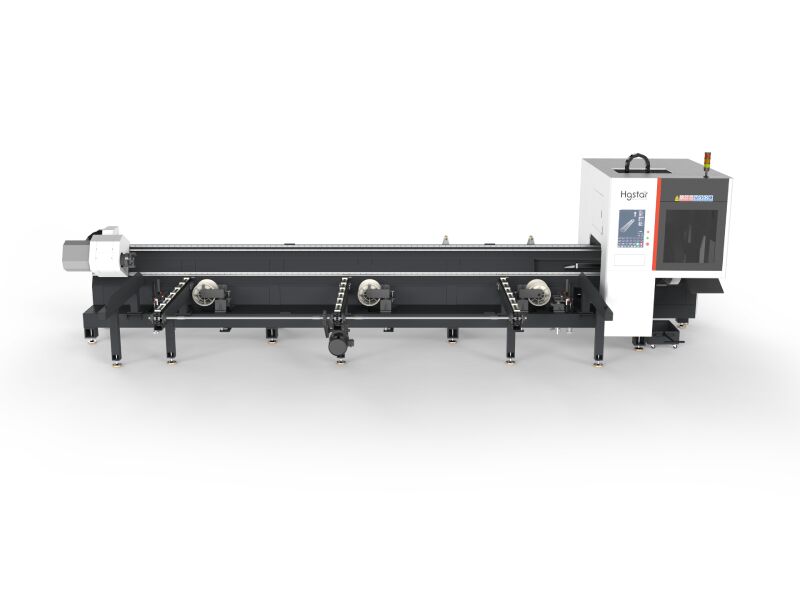

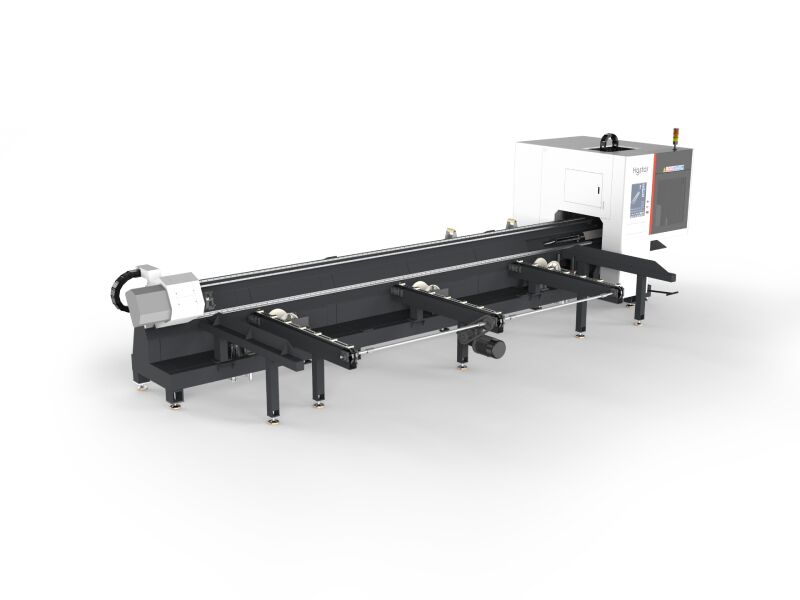

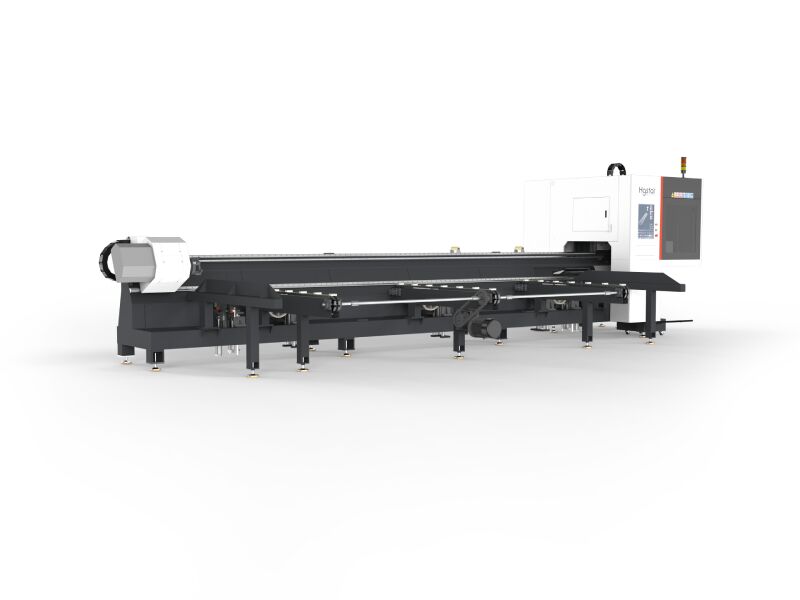

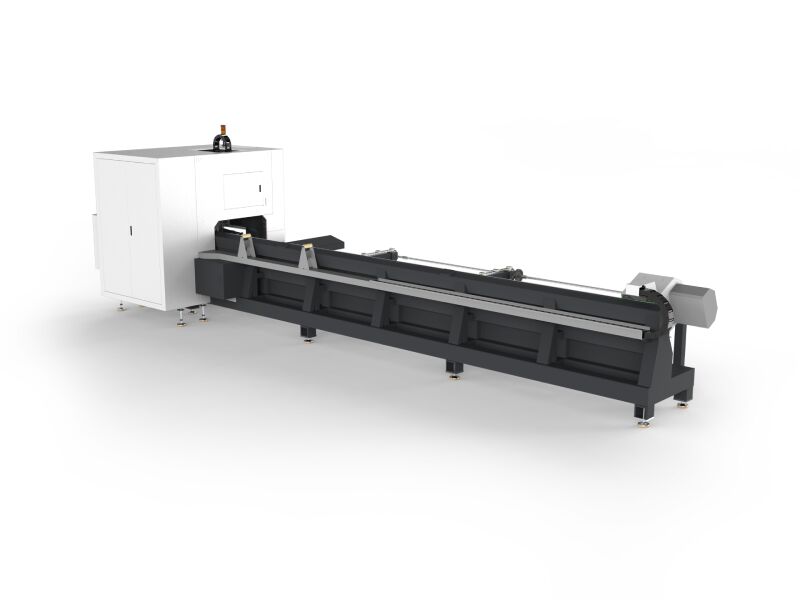

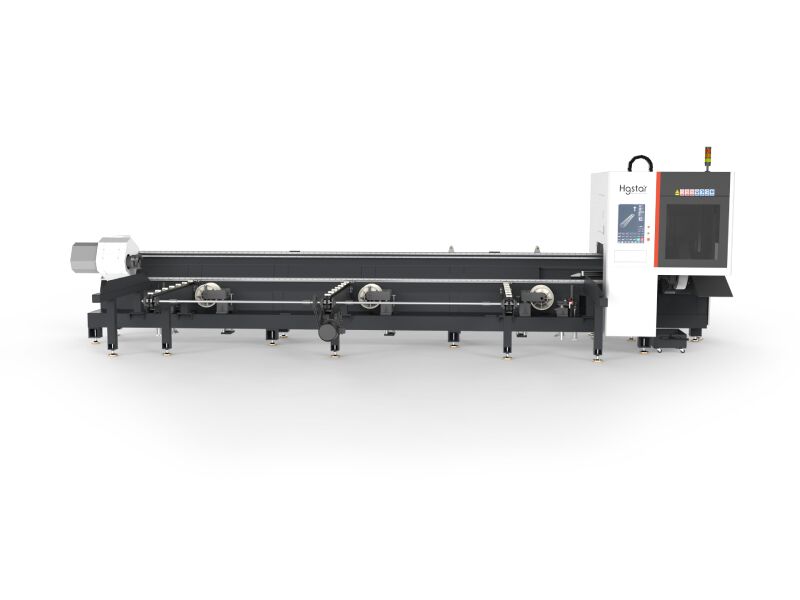

Smart TR Series Two Chuck Side Mounted CNC Laser Pipe Cutter

Model:SMART TR120/SMART TR230

Category: Laser Tube Cutting Machine

Brand Name: HGSTAR

Laser power: 1500W 2000W 3000W

Stock: 20 units in stock

Uses: A laser tube cutter will replace mechanical drilling, milling, sawing, punching or cleaning of burrs and other processing procedures that require different metal pipe cutters and hard tools, and realize the cutting, chamfering, and cutting of complex pipe structures.

Smart TR Series Two Chuck Side Mounted CNC Laser Pipe Cutter is manufactured by HGSTAR according to international export standard. This series of equipment is the preferred model for the metal tube processing industry.

The Main Features of Smart TR Series include:

1.Stable, lightweight structure with high dynamic responsiveness；

2.Semi-automatic chain-type loading system included as standard；

3.Pneumatic chuck retraction (secondary Y-axis) included as standard；

4.Unloading platform optional (up to 3500mm, with dual adjustable-diameter support wheels).

Smart TR Series CNC Laser Pipe Cutter Parameter

MODEL SMART TR120 SMART TR230
Maximum loading capacity of chuck 120kg 200kg
Pipe loading length Max 6500mm
Pipe unloading length Max 1500mm
Laser Source 1500W、2000W、3000W
Chuck diameter Round tube: 20-120mm Square tube: 20-120mm Round tube: 20-230mm Square tube: 20-230mm
Machine Size 10260×3770×2000mm 9030×3200×2350
Material Type Carbon steel or stainless steel round tube, square tube, rectangular tube, oval tube
Power Supply Requirement 380V 50Hz

Features of Laser Tube Cutting Machine

Equipped with standard pneumatic chuck retraction, enabling a minimum tail length of 50mm with efficient tube cutting layout.

Optimized for small, thin tubes with high cost-efficiency; 3000kg machine weight, 120mm side-mounted chuck, and 1.5G maximum acceleration for improved cutting efficiency.

automatic loading of laser tube cutting machine

Optional storage hopper enables fully automatic loading;

Side-mounted design with low tube height for easier unloading of longer tubes;

Fully bus-based control system

laser cutting tube sample

Applications:

Fitness equipment, construction, automotive, engineering machinery, and more.
