Model: Smart FS Series
Category: Laser Cutting Machine
Brand Name: HG Smart
Laser power: 1000W-6000W
Stock: 20 units in stock
Uses: It can cut stainless steel, carbon steel, galvanized sheet, electrolytic sheet, brass, aluminum, various alloy sheets, rare metals and other metals.

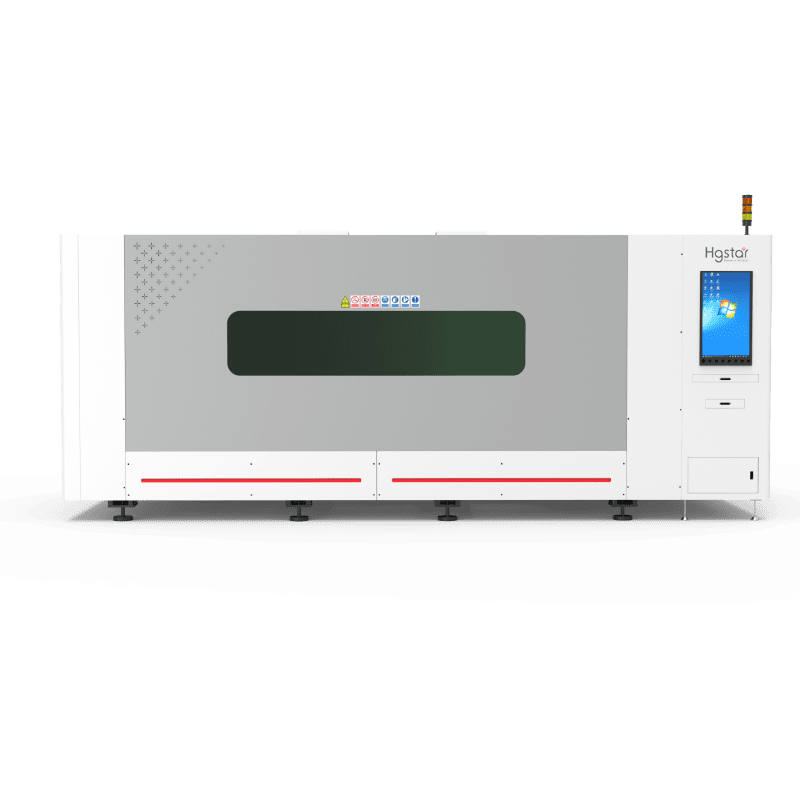

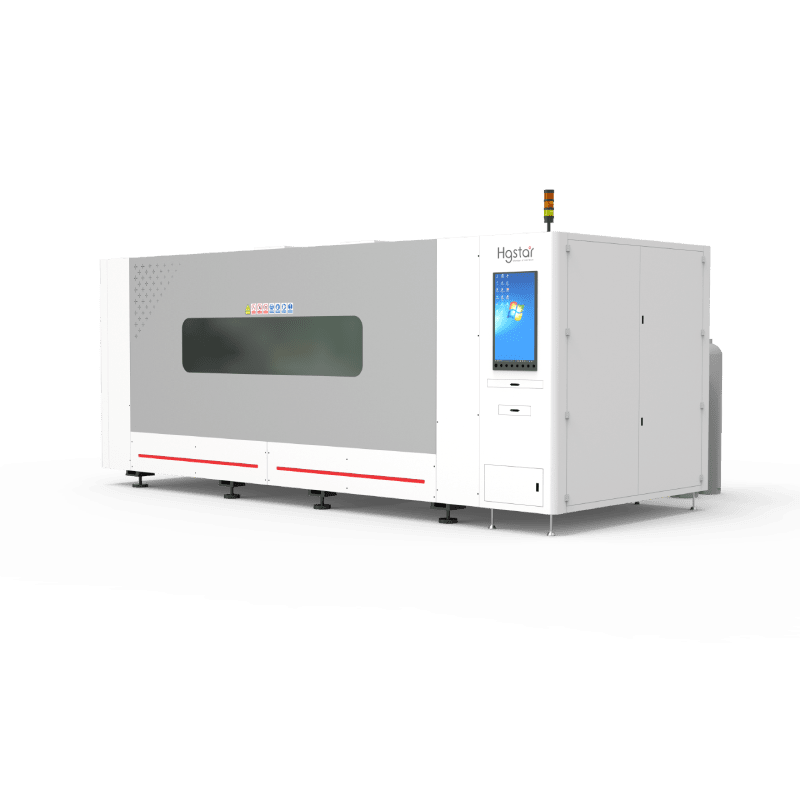

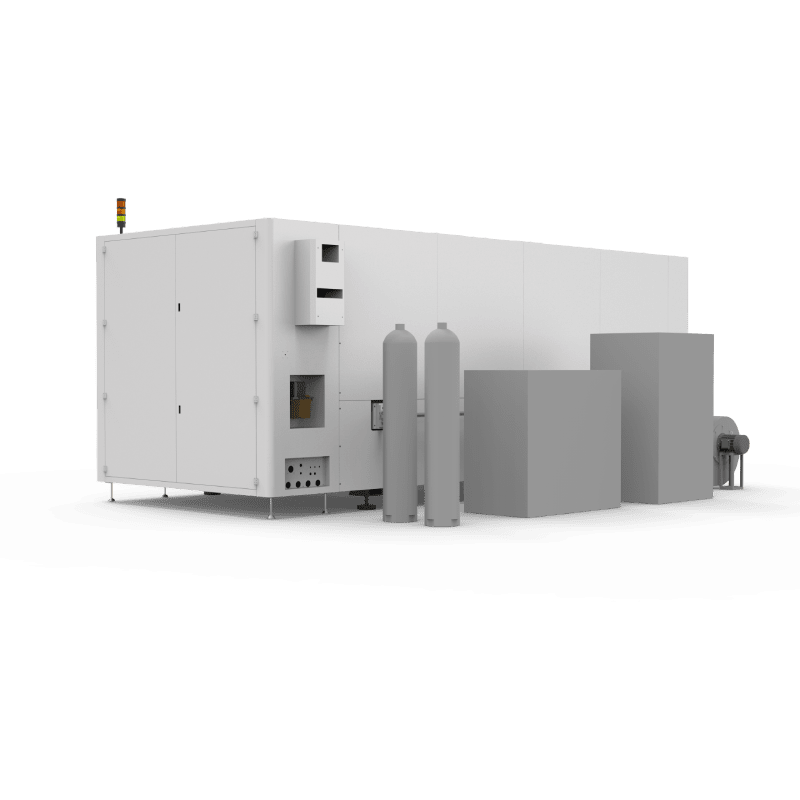

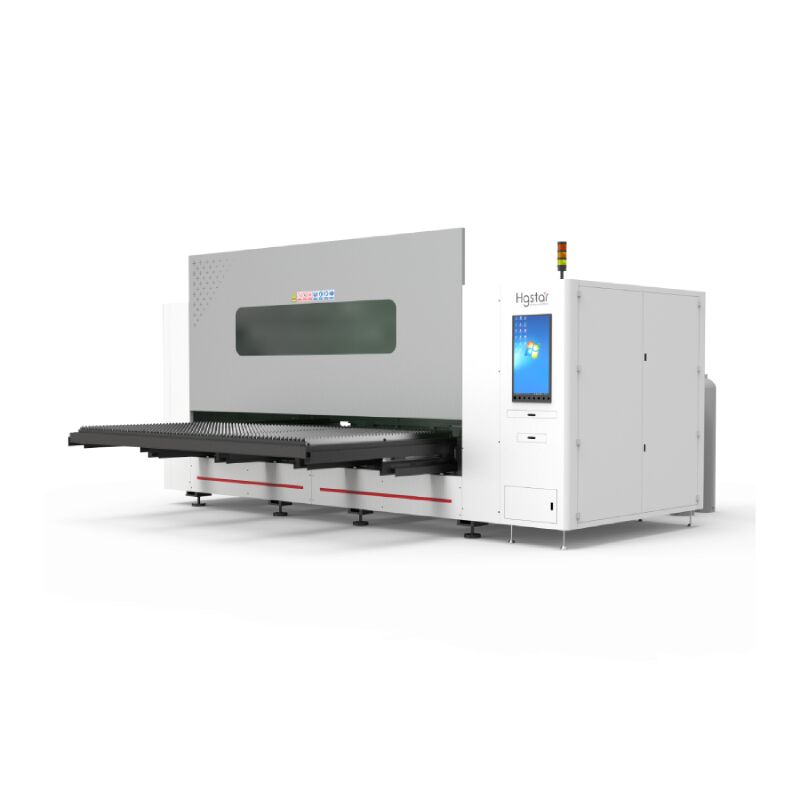

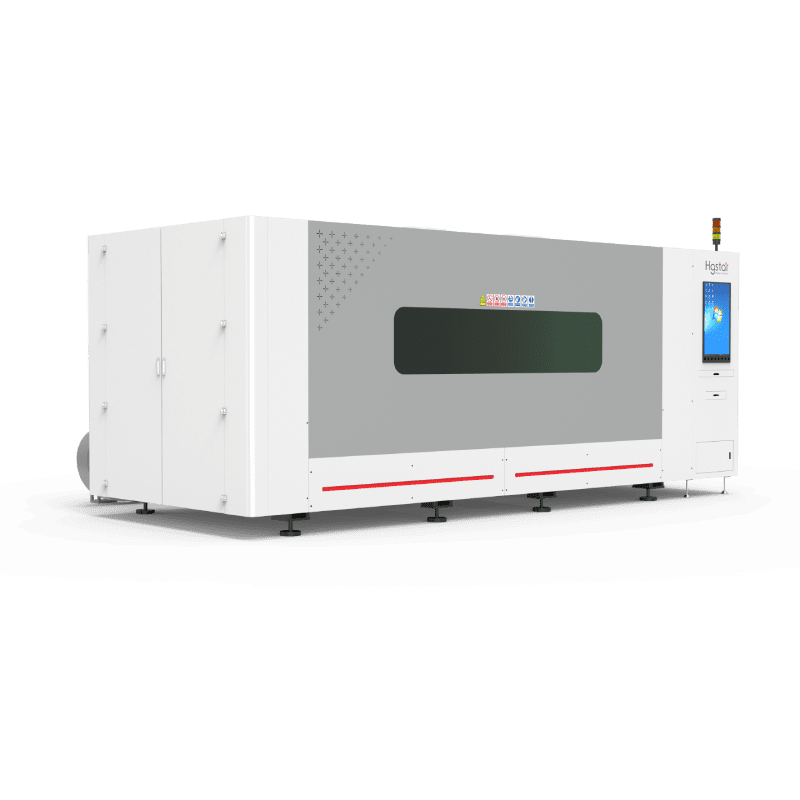

Smart FS Series Side Uploading Enclosed Single Plate Laser Cutting Machine is manufactured by HGSTAR, it offers efficient, precise cutting for all kinds of sheet metal with power options from 1kW to 6kW. With enclosed frame design, it ensures pollution-free, eco-friendly cutting.

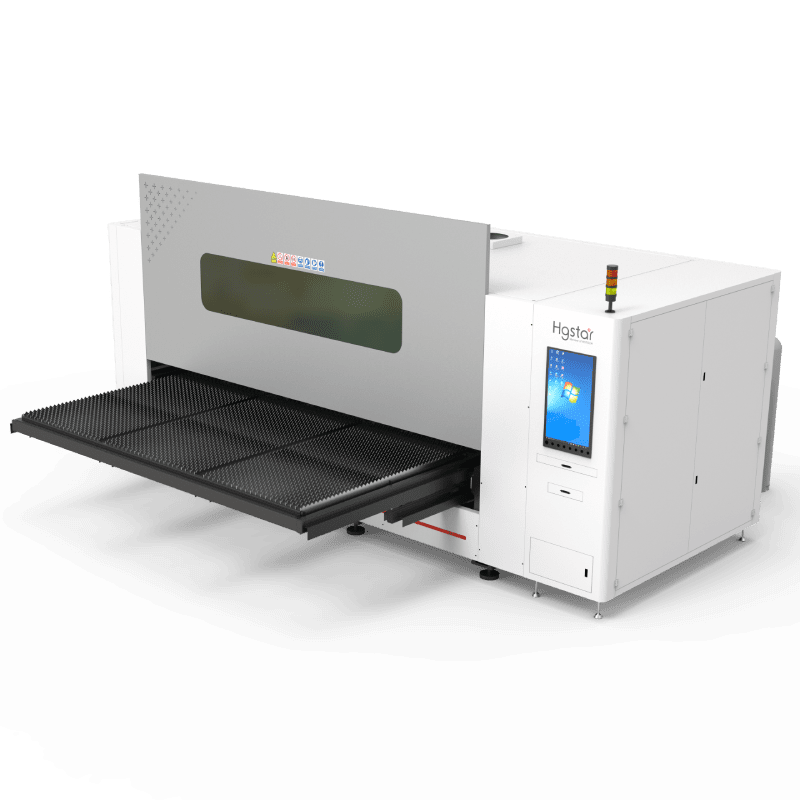

1.The worktable is equipped with support wheels, increasing the table’s load capacity by 15%.
2.The optimized lift door height improves convenience, significantly boosting cutting efficiency.
3.Compact design, high cost-performance, and reduced transportation costs.
4.Easy installation with a one-stop installation process.

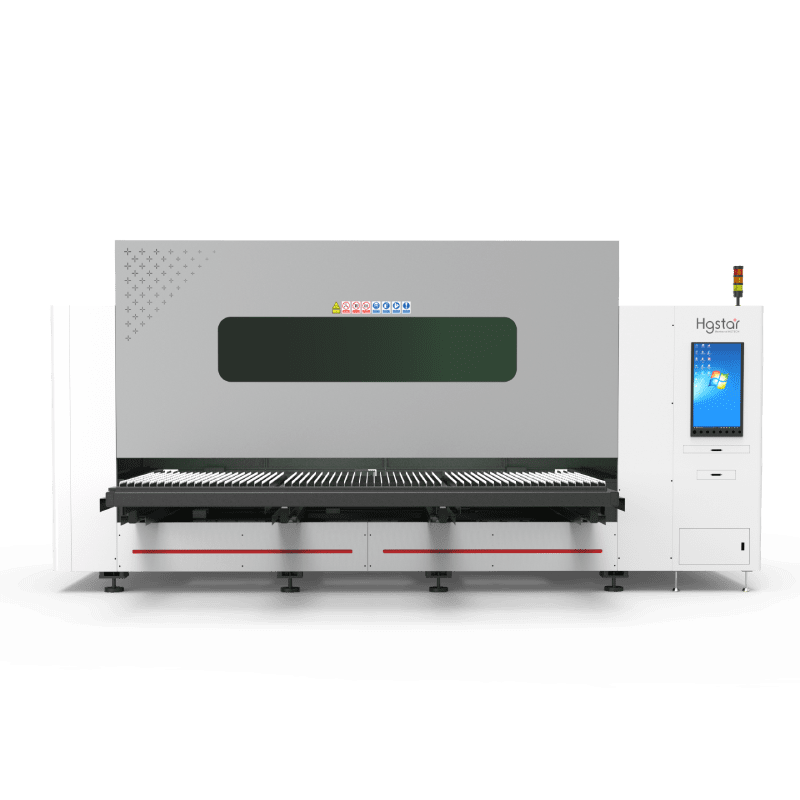

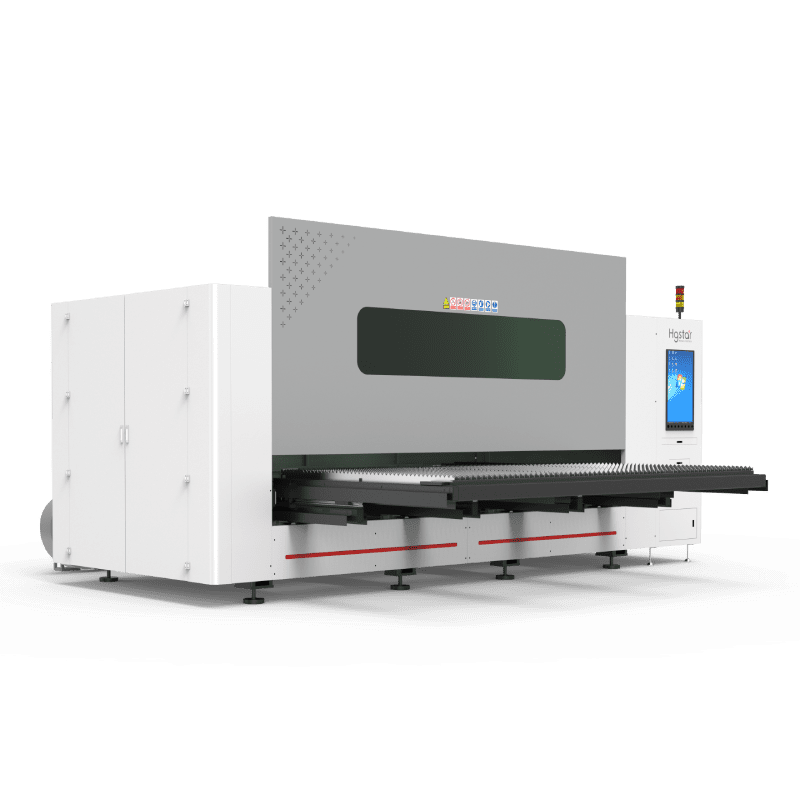

5.Large surrounding single-platform side-opening design, saving floor space.
6. Improved crossbeam, greatly enhancing cutting precision and stability.
| Machine Model | SMART 3015FS |
|---|---|
| Cutting Area (L×W) | 3048 mm x 1524 mm |
| Laser Source | Fiber & 1000W – 6000W |
| CNC System | FSCUT 1000 |
| Max Moving Speed | 80m/min, Acceleration is 1.0G |
| Position Accuracy (X and Y axis) | 0.05mm |
| Reposition Accuracy (X and Y axis) | 0.03mm |
| Power Supply Requirement | 380V 50/60Hz 35KVA |
It is manufactured with aerospace standards and fomed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all beams. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance,anti-oxidation, low density, and greatly increase the processing speed.
High Speed: The light crossbeam can ensure the machine have high moving speed and improve the processing efficiency.
The machine bed is processed with a stress relief annealing method at 600°C, which ensures a strong structure rigidity.
Small Deformation|Low Vibration|High Precision
Second generation optical fiber transmission system, better and more stable beam quality.
Through fine setting, the dust removal tuyere can be opened and closed with the movement of the cutting head. Under the same fan configuration, the dust removal effect is effectively enhanced
