The Smart Pro Series laser cutting machine is the high power fiber laser metal cutting machine with exchange pallet has faster cutting speed and high power laser source (1000W, 2000W, 3000W, 4000W, 6000W) compared to other cutting solutions, now the high power laser cutting machine for sale at affordable price.

Details  Beam

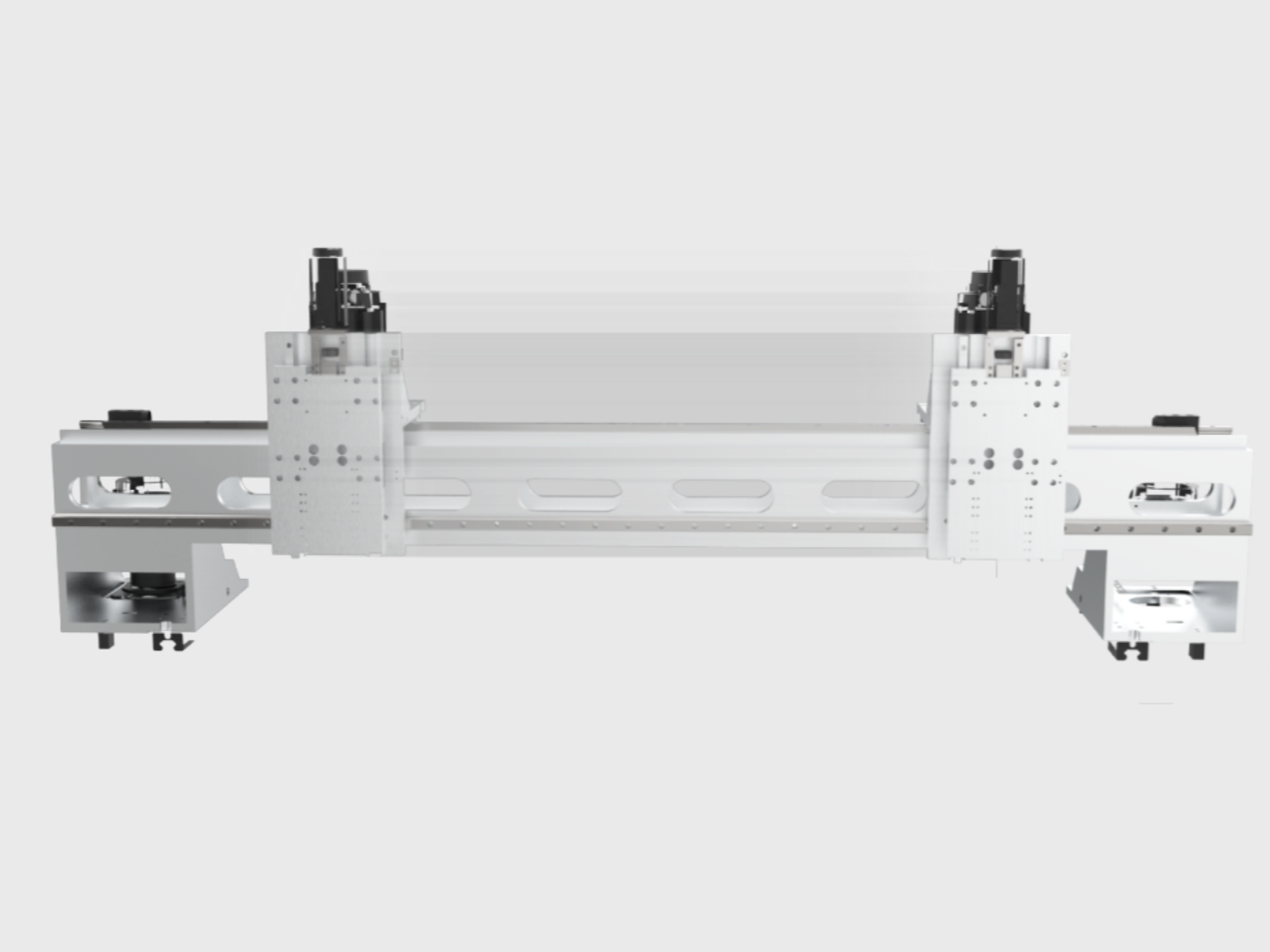

Aviation Aluminum Alloy Beam

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance,anti-oxidation, low density, and greatly increase the processing speed.

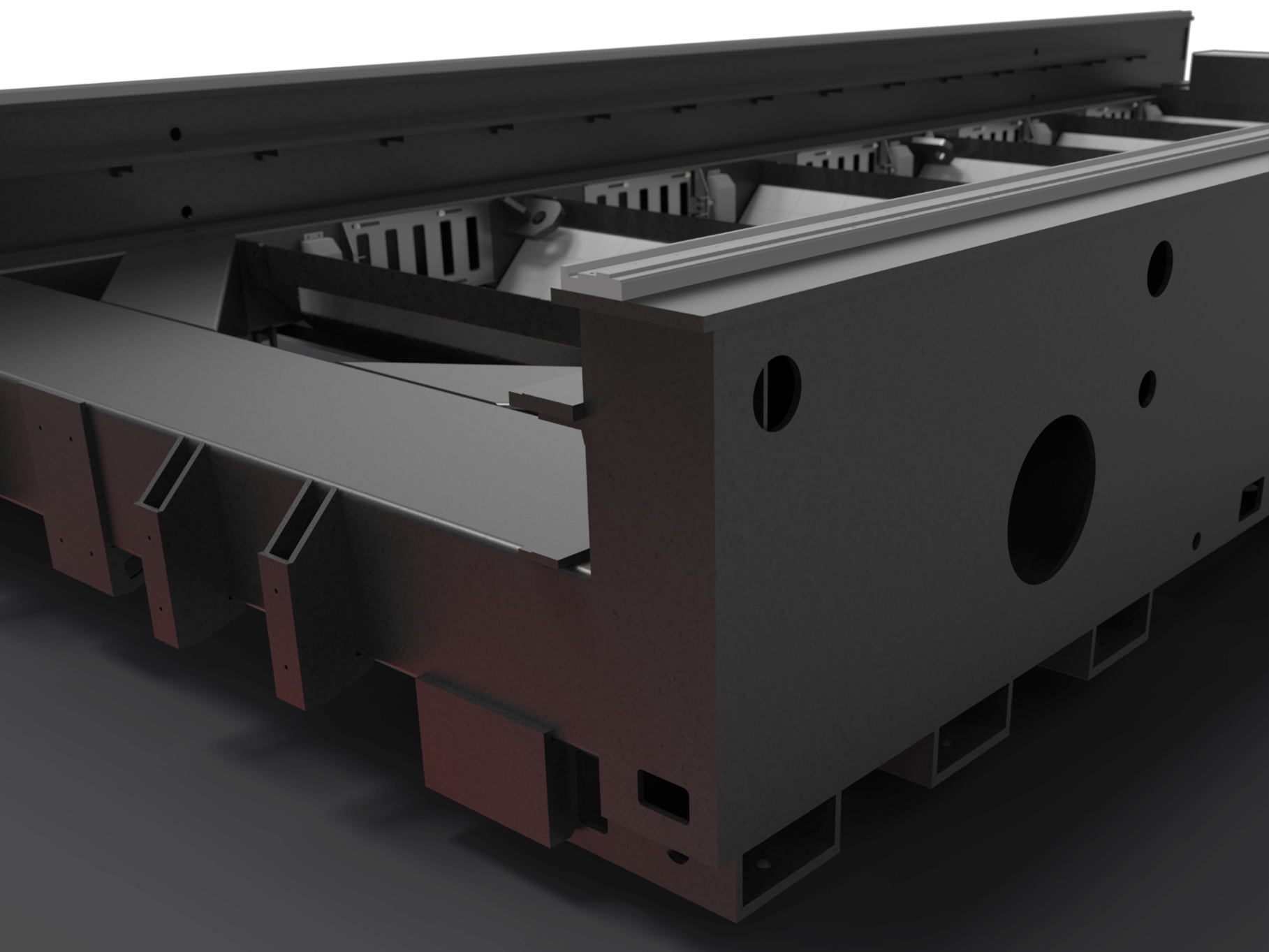

 Machine Bed

Super Heavy Welded Bed

It is welded by heavy steel plate, the current mainstream bed structure, high stability.The plate welding bed is subjected to stress relief annealing treatment on the basis of heavier, so that the bed is not easy to deform.

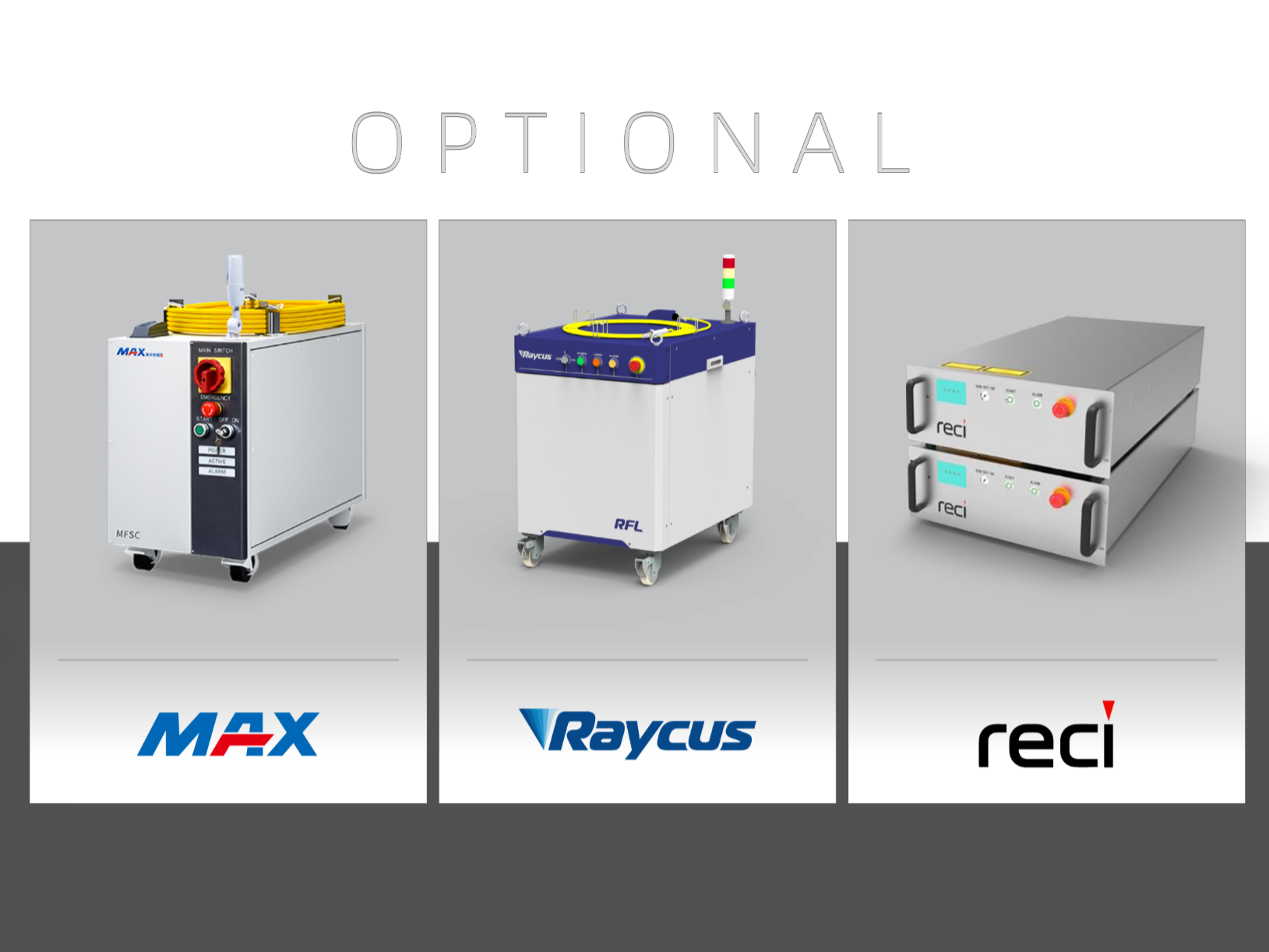

 Laser Sources

Higher photoelectric conversion efficiency

Second generation optical fiber transmission system

Better and more stable beam quality

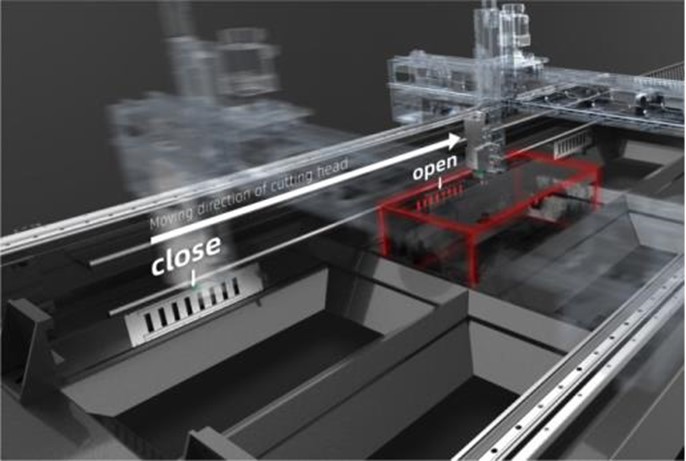

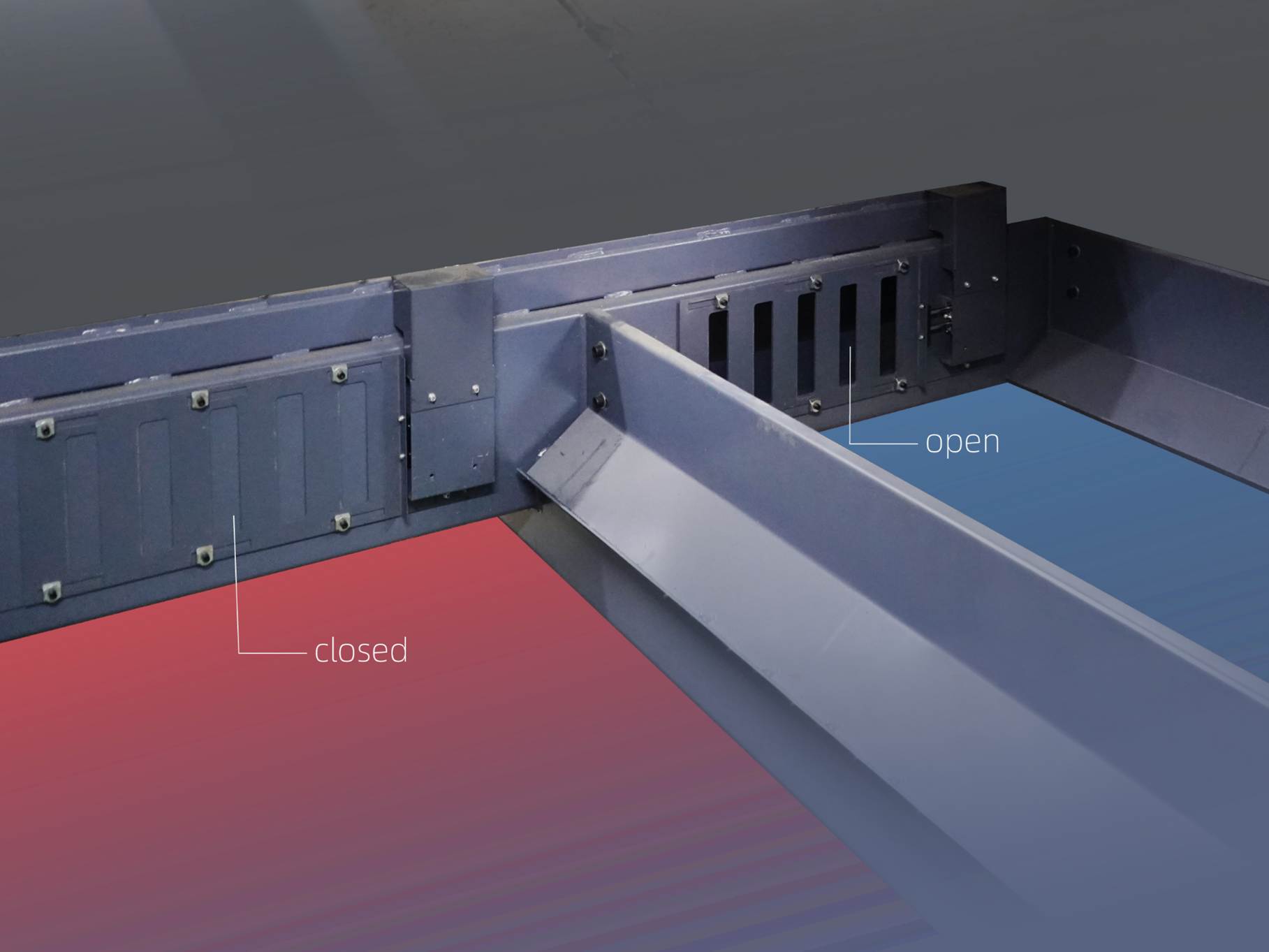

 Dust Removal

Partition Dust Removal

Through fine setting, the dust removal tuyere can be opened and closed with the movement of the cutting head. Under the same fan configuration, the dust removal effect is effectively enhanced

Details  Structure

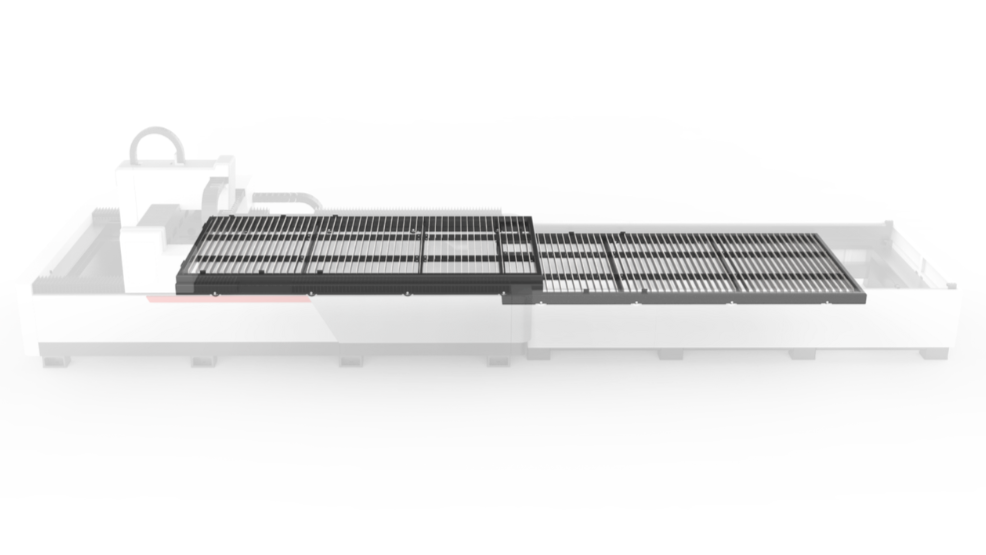

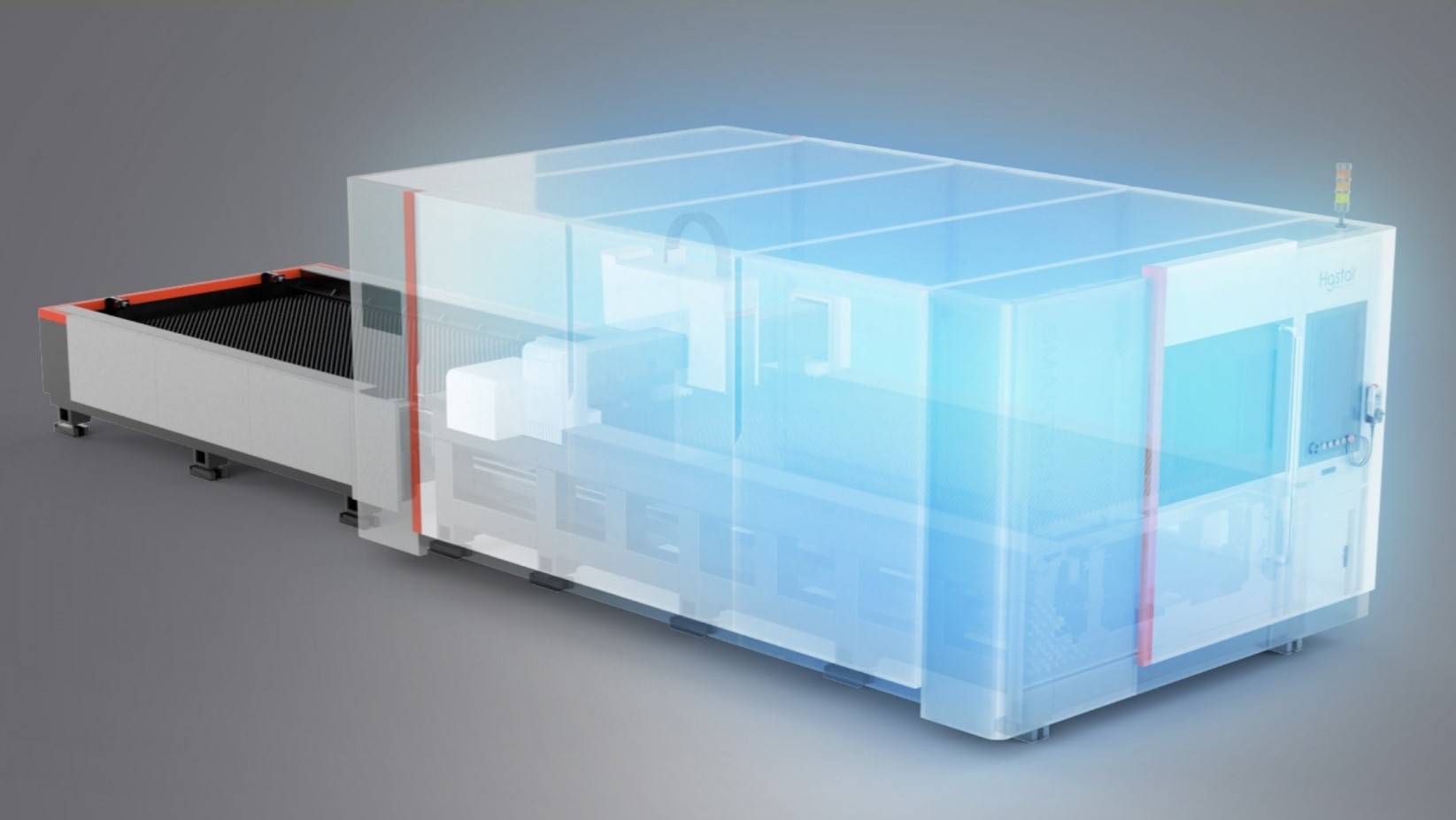

High-speed parallel exchange platform design

Simultaneous exchange of two worktables, stable and reliable transmission mode, shorter exchange time, and improved frequency converter.

Security and non-pollution

With a completely enclosed design;

The observation window is made of laser-protective glass that meets European CE standards.

Ability  Excellent Functions

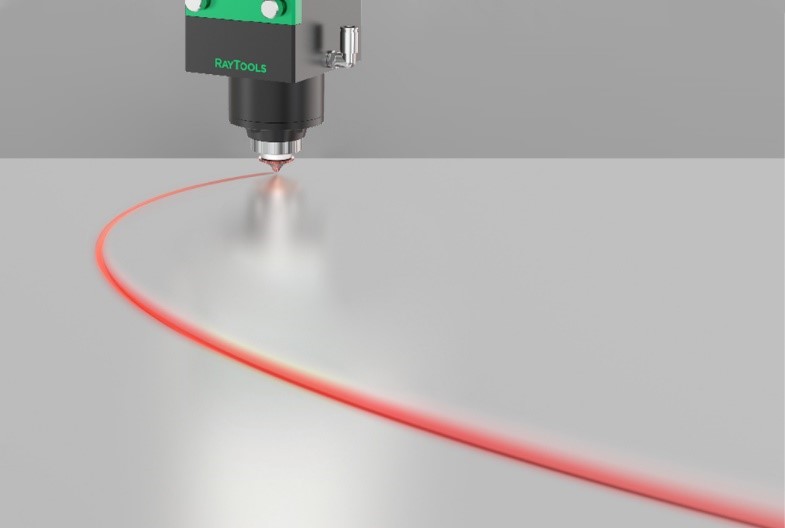

Vibration Suppression

One key quick setting can easily solve the vibration problem of thick plate processing

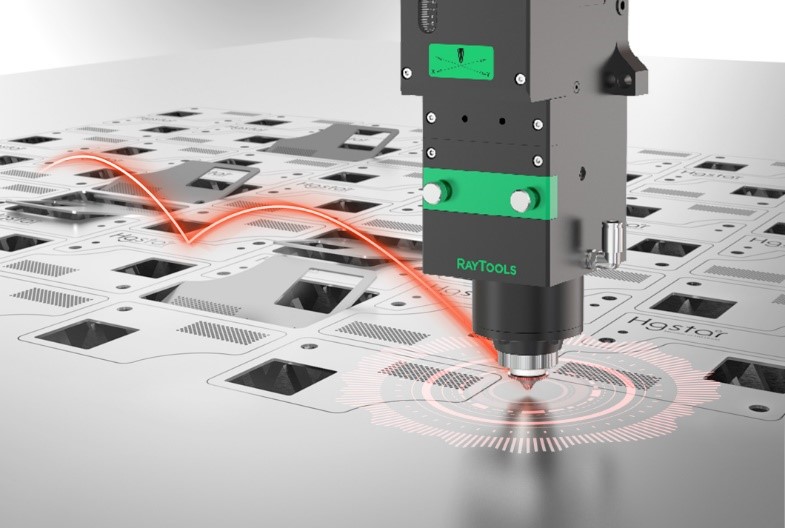

Intelligent obstacle avoidance

Intelligently avoid random raised areas in the cutting process and reduce the risk of head collision

Exclusive tuning database

All you need to do is a simple touch, and the complicated operations are handed over to us

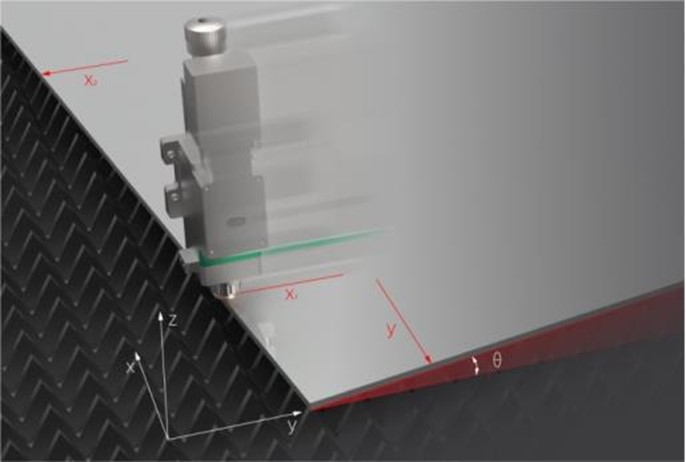

Three point edge finding

The inclination angle and origin of sheet metal are sensed through automatic edge-finding to avoid waste and save time

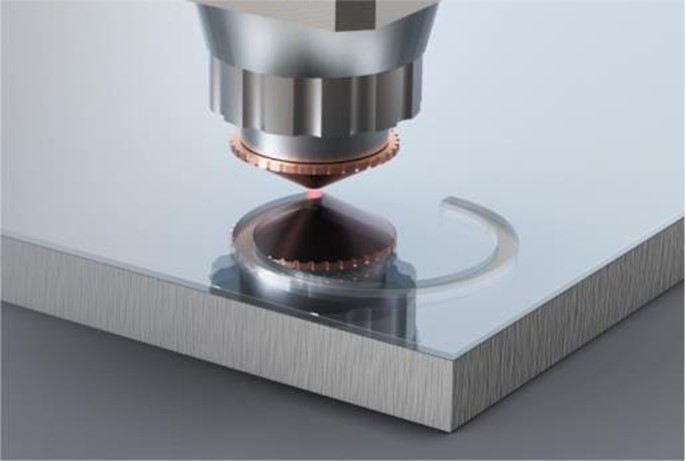

Membrane removal process

The sequence of film removal and pre perforation can be set flexibly and make workpiece cutting more perfect

Partition dust removal

Through fine setting, the dust removal tuyere can be opened and closed with the movement of the cutting head. Under the same fan configuration, the dust removal effect is effectively enhanced

Ability  Cutting Parameters

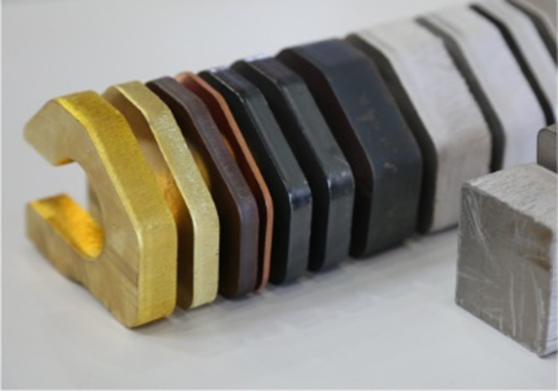

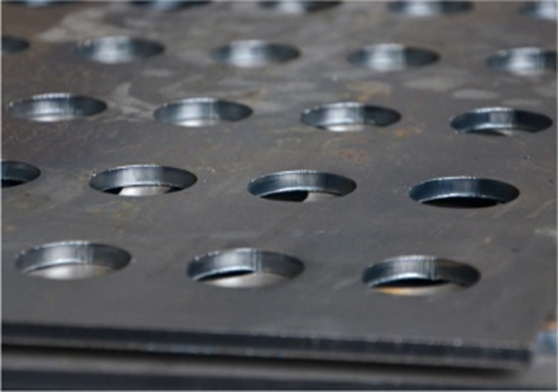

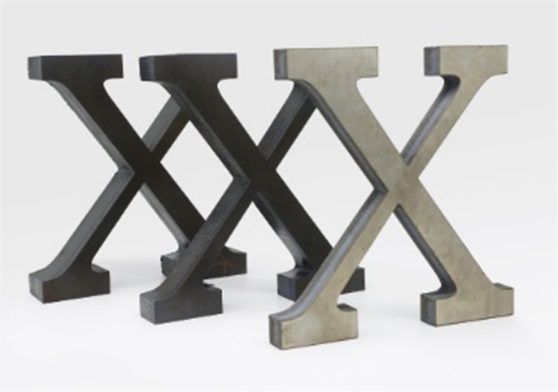

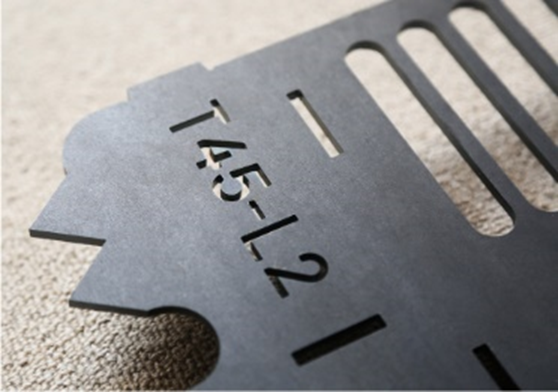

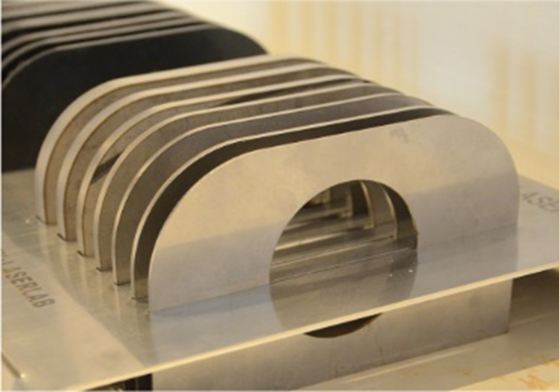

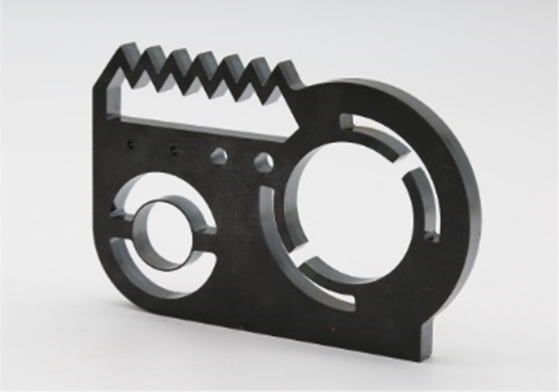

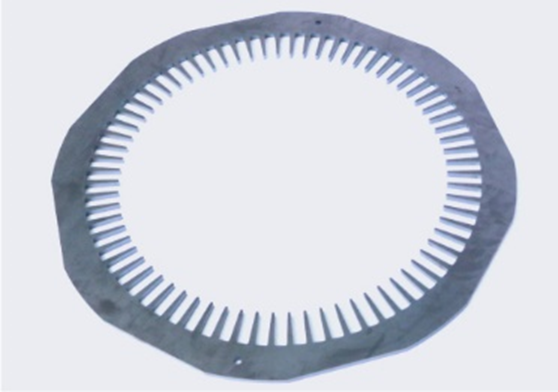

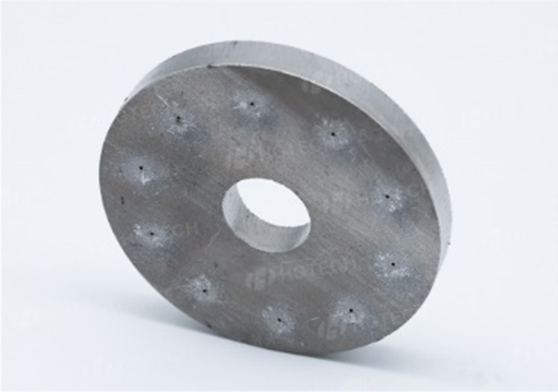

 Cutting Samples

Details  Technical Specifications

Machine Model SMART3015 PRO
Cutting Area (L * W) 3050mm * 1530mm
Laser Source 1000W – 6000W
CNC System FSCUT 2000
Laser Cutting Head BM111 F125mm
Max Moving Speed 120m/min, Aceleration is 1.2G
Position Accuracy (X and Y axis) ±0.02mm
Reposition Accuracy (X and Y axis) ±0.03mm
Power Supply Requirement 380V 50/60Hz 45KVA
Machine Weight ≤7000 Kg
Total Power Supply Appearance Size 8880mm * 2920mm * 2500mm
