The Basic Principles of Coil Fed Laser Blanking Line

The coil laser blanking line is an automated production line that uses leveling and servo feeders to feed the coil into the machine for blanking processing. This kind of production line is usually used for the production of ceiling doors and windows, automobile sheet metal and other metal materials. The use of coil laser blanking lines has revolutionized the way to provide a more efficient, economical and precise way to manufacture products.

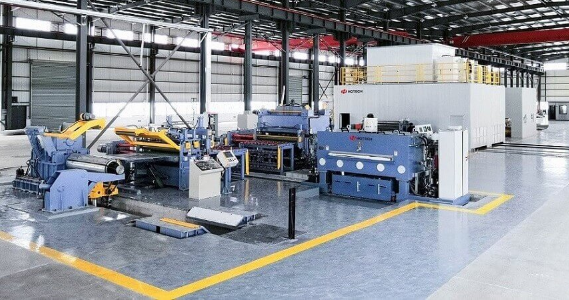

In current industrial production, in order to facilitate transportation and storage, boards are harvested into rolls. During production and processing, the coil is uncoiled and leveled to form a plate, and then the plate is introduced into the laser cutting equipment for cutting. The coil laser cutting production line is mainly composed of CAD/CAM programming system, automatic uncoiling, leveling system, servo automatic feeding, and laser cutting system. It can operate as planned, greatly improving production efficiency, reducing labor burden, reducing production costs, and reducing It occupies a large area and has the characteristics of high efficiency, high precision, low cost, and easy operation.

Before the introduction of coil-fed laser blanking lines, traditional technical production methods involved manual labor and the use of outdated machinery. This often results in inefficiencies, errors and increased costs. For example, in the production of metal block materials, the use of manual labor results in inconsistent quality of the finished product, while the use of outdated machinery often results in extended production times and increased maintenance costs.

The limitations of traditional production methods have led to the development of more advanced production systems, such as coil-fed laser blanking lines. Compared with traditional methods, these production lines have several benefits, such as increased efficiency, reduced labor costs, and improved accuracy. In addition, laser blanking lines can handle a wider range of materials and produce products with higher precision and quality.

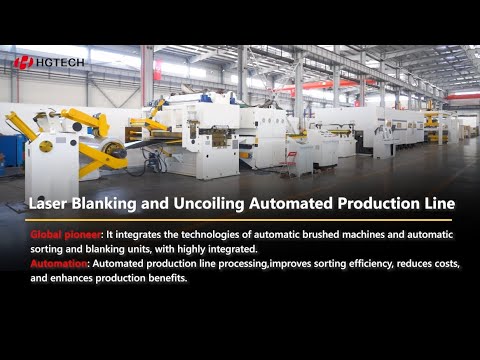

The coil laser blanking line works on the principle that a leveling and servo feeder feeds the coil into a laser cutting machine. The laser is programmed to cut the coil to the required length and feed it into the machine for further processing. This process is repeated until the required amount of material is produced, using robots or automatic palletizing during the blanking process to reduce the need for manual labor and improve the quality of the finished product.

The laser blanking system requires a series of dynamic profile conveying devices that can support the web and provide a cutting path for the laser head. These small channels are dynamically reset independently of each other to ensure that an obstacle-free channel is formed under the moving laser head. In this way, the web can pass smoothly through the system without causing congestion, and waste material can be automatically removed during the cutting process to obtain burr-free, ready-to-use parts.
